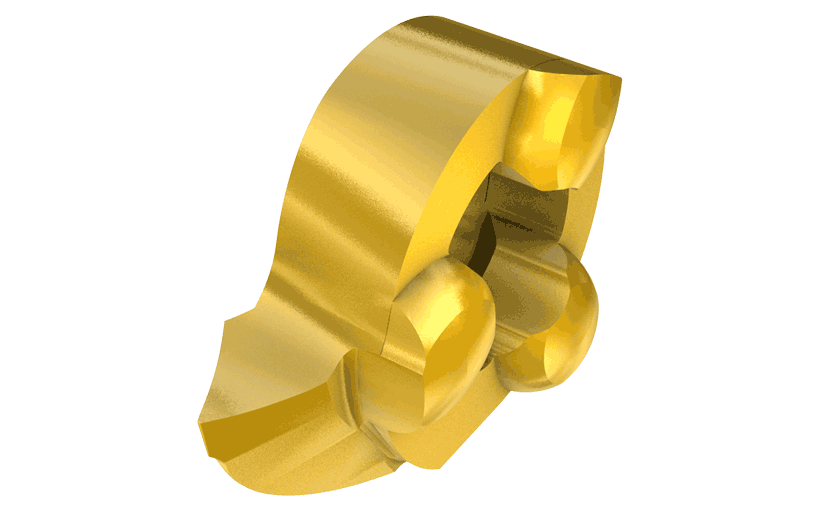

GIQL 8-WT-0.05 IC528-Internal inserts with Whitworth partial profile for threading in 8 mm and larger holes. CHAMGROOVE - part of the CHAMELEON multifunction system.

Dostępność: duża ilość

Cena brutto: 99,07 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

99.07

Cena netto: 80,54 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 110,08 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3355055

GIQL 8-WT-0.05 IC528

Podstawowe informacje
FamilyName	GIQR/L-WT
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3355055
ProductName	GIQL 8-WT-0.05 IC528
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Internal inserts with Whitworth partial profile for threading in 8 mm and larger holes. CHAMGROOVE - part of the CHAMELEON multifunction system.
FamilyShortDesc	Internal Inserts with Whitworth Partial Profile for Threading in 8 mm and Larger Holes
Link	https://www.Iscar.com/ecat/e.asp?cat=3355055
Remarks	Can be used for thread milling by circular interpolation TPI min D/5.9 D-diameter of thread (pitch max<=W)
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Threading (Int.) \|
APP1Name	Threading (Int.)
ItemRemark
Coating	TiCN+TiN
Cutting Edge Material	Carbide
Tool Type	Groove-Turn Precision Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0021
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3355055
Grade	IC528
Corner Radius (RE)	0.05 mm
Cutting Edge Length (L)	7.78 mm
Profile Included Angle (PNA)	55 Degrees
Thread Form Type (THFT)	WH55
Threads per Inch Maximum (TPIX)	50
Threads per Inch Minimum (TPIN)	16
