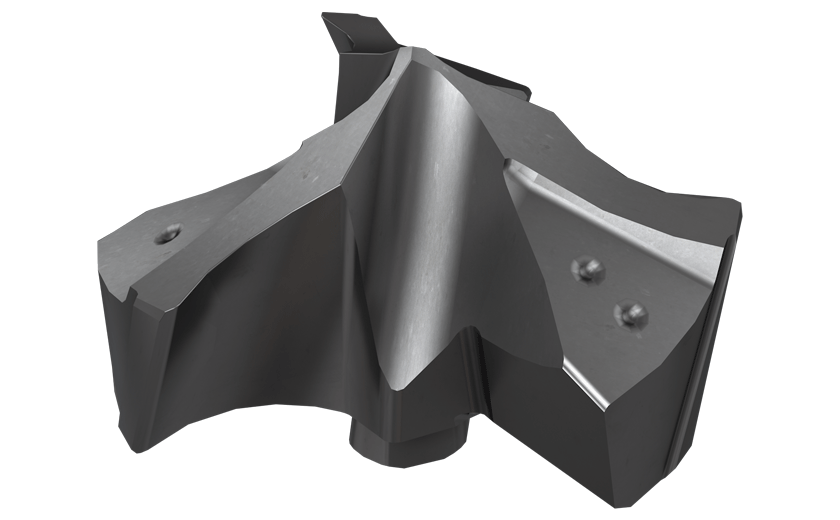

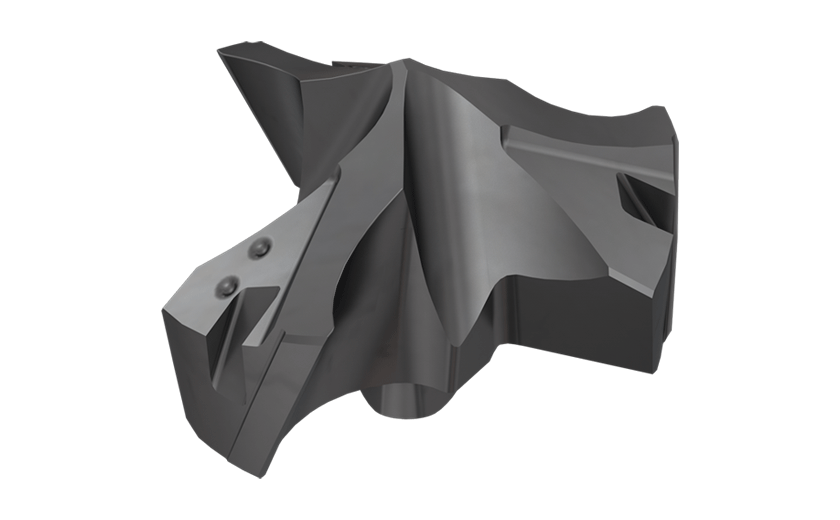

» H3P 224-IQ IC908-Exchangeable 3 flute drilling heads for machining carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.1 mm.

H3P 224-IQ IC908-Exchangeable 3 flute drilling heads for machining carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.1 mm.

Dostępność: duża ilość

Cena brutto: 961,46 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

961.46

Cena netto: 781,67 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 804,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3353137

H3P 224-IQ IC908

Podstawowe informacje
FamilyName	H3P
ToolType	Insert
Unit	M
PackSize	2
product_code	ISC3353137
ProductName	H3P 224-IQ IC908
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Exchangeable 3 flute drilling heads for machining carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.1 mm.
FamilyShortDesc	Exchangeable 3 Flute Drilling Heads for Machining Carbon and Alloy Steel (ISO P) and Cast Iron (ISO K)
Link	https://www.Iscar.com/ecat/e.asp?cat=3353137
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0265
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	3353137
Grade	IC908
Chamfer Angle	15 Degrees
Cutting Diameter (DC)	22.4 mm
Functional Length (LF)	7.93 mm
Insert Seat Size Code (SSC)	22
Protruding Length (LPR)	12.62 mm
Point Angle (SIG)	135 Degrees
Point Length (PL)	4.69 mm
