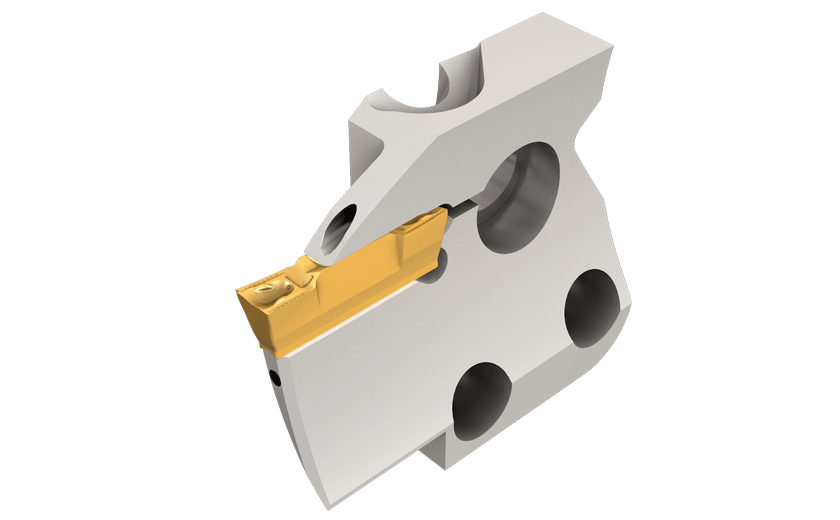

HFPAD 4R-44-T14-JHP-Adapters for face grooving and turning, for 40-3000mm diameter range. Part of the MODULAR-GRIP system

Dostępność: duża ilość

Cena brutto: 599,85 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

599.85

Cena netto: 487,68 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 666,50 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3375974

HFPAD 4R-44-T14-JHP

Podstawowe informacje
FamilyName	HFPAD-JHP
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3375974
ProductName	HFPAD 4R-44-T14-JHP
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Adapters for face grooving and turning, for 40-3000mm diameter range. Part of the MODULAR-GRIP system
FamilyShortDesc	Adapters for Face Machining
Link	https://www.Iscar.com/ecat/e.asp?cat=3375974
Remarks	WF(assembly)=WF(shank) + WF(adapter) HGN,GRIP,DGN inserts can be used only with right-hand adapters, HGPL inserts with left-hand adapters For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD For insert clamping instructions, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Face Grooving \| Face Grooving & Turning \| Face Grooving Along Shaft \|
APP1Name	Face Grooving
APP2Name	Face Grooving & Turning
APP3Name	Face Grooving Along Shaft
ItemRemark
Tool Type	Face Turning & grooving Tools
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.0430
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3375974
Axial Groove Outside Diameter Minimum (DAXN)	44 mm
Axial Groove Outside Diameter Maximum (DAXX)	58 mm
Cutting Depth Maximum (CDX)	14 mm
Cutting Direction (HAND)	Right Hand
Cutting Width (CW)	4 mm
Functional Width (WF)	4.8 mm
Overall Length (OAL)	40.5 mm
