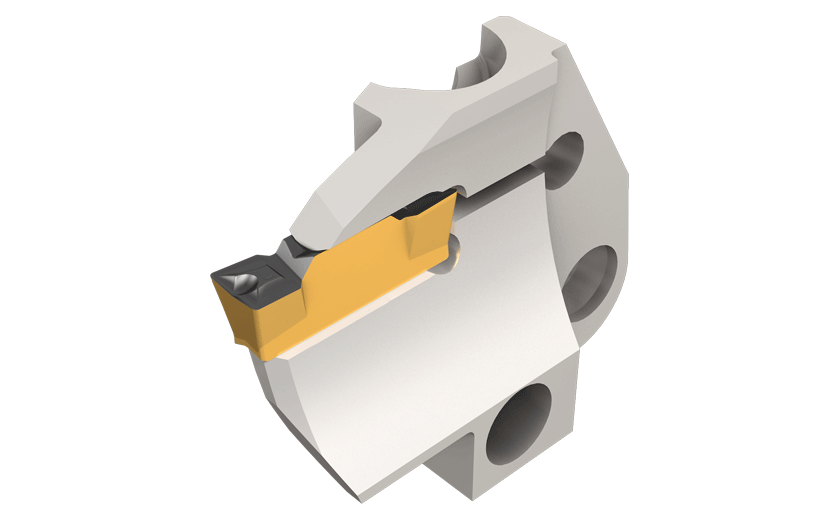

HFPAD 5L-110-T14-Adapters for face grooving and turning in the 40-800 mm diameter range. Part of the MODULAR-GRIP system.

Dostępność: duża ilość

Cena brutto: 402,48 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

402.48

Cena netto: 327,22 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 447,20 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2550144

HFPAD 5L-110-T14

Podstawowe informacje
FamilyName	HFPAD-5
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC2550144
ProductName	HFPAD 5L-110-T14
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Adapters for face grooving and turning in the 40-800 mm diameter range. Part of the MODULAR-GRIP system.
FamilyShortDesc	Adapters for Face Machining
Link	https://www.Iscar.com/ecat/e.asp?cat=2550144
Remarks	WF(assembly)=WF(shank) + WF(adapter) DGN & GRIP 5.. inserts can be used only with right-hand adapters, HGPL 5..inserts with left-hand adapters For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD. For insert clamping instructions, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Face Grooving \| Face Grooving & Turning \| Face Grooving Along Shaft \|
APP1Name	Face Grooving
APP2Name	Face Grooving & Turning
APP3Name	Face Grooving Along Shaft
ItemRemark
Tool Type	Face Turning & grooving Tools
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.0440
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	2550144
Axial Groove Outside Diameter Minimum (DAXN)	110 mm
Axial Groove Outside Diameter Maximum (DAXX)	200 mm
Cutting Depth Maximum (CDX)	14 mm
Cutting Direction (HAND)	Left Hand
Cutting Width (CW)	5 mm
Functional Width (WF)	4.5 mm
Overall Length (OAL)	40.5 mm
