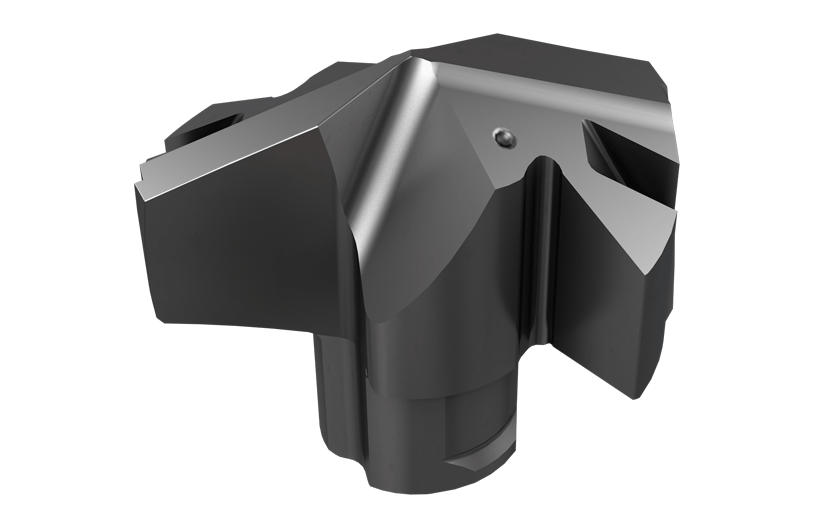

ICP 184 IC908-Exchangeable drilling heads for DCN drills, for machining ISO P Materials. The drill head is designed with a honed cutting edge, available in increments of 0.1 mm.

Dostępność: duża ilość

Cena brutto: 636,26 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

636.26

Cena netto: 517,28 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 533,20 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5509413

ICP 184 IC908

Podstawowe informacje
FamilyName	ICP
ToolType	Insert
Unit	M
PackSize	2
product_code	ISC5509413
ProductName	ICP 184 IC908
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Exchangeable drilling heads for DCN drills, for machining ISO P Materials. The drill head is designed with a honed cutting edge, available in increments of 0.1 mm.
FamilyShortDesc	Exchangeable SUMO-CHAM Drilling Heads for Machining ISO P Materials
Link	https://www.Iscar.com/ecat/e.asp?cat=5509413
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Chamfering \| Drilling \| Gundrills \|
APP1Name	Chamfering
APP2Name	Drilling
APP3Name	Gundrills
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Drilling Heads
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0205
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	5509413
Grade	IC908
Cutting Diameter (DC)	18.4 mm
Functional Length (LF)	7.7 mm
Insert Thickness (S)	10.5 mm
Insert Seat Size Code (SSC)	18.0
Point Angle (SIG)	140 Degrees
Point Length (PL)	2.8 mm
