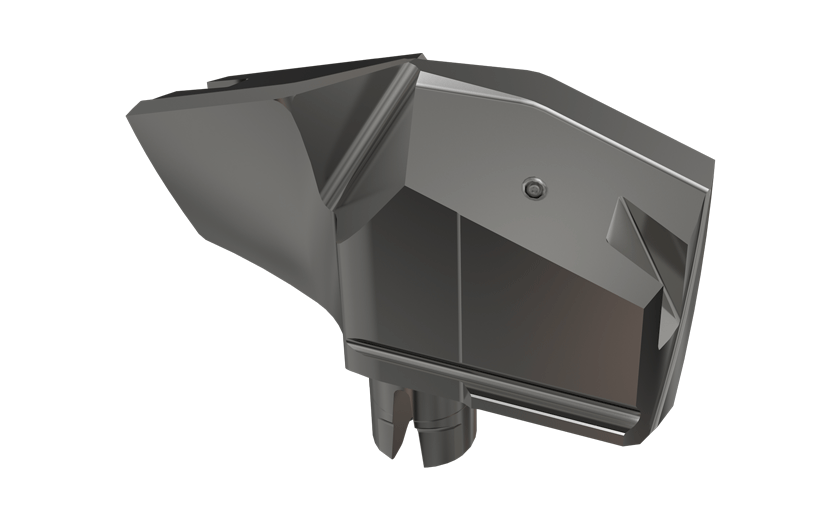

IFP 1375-SPADE IQ IC908-Exchangeable DFN drill heads for machining ISO P, ISO M and high temp. alloys (ISO S) materials

Dostępność: duża ilość

Cena brutto: 923,75 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

923.75

Cena netto: 751,02 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 752,50 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3392193

IFP 1375-SPADE IQ IC908

Podstawowe informacje
FamilyName	IFP-IQ
ToolType	Insert
Unit	I
PackSize	1
product_code	ISC3392193
ProductName	IFP 1375-SPADE IQ IC908
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Exchangeable DFN drill heads for machining ISO P, ISO M and high temp. alloys (ISO S) materials
FamilyShortDesc	Exchangeable DFN Drill Heads for Machining ISO P, ISO M and High Temp. Alloys (ISO S) Materials
Link	https://www.Iscar.com/ecat/e.asp?cat=3392193
Remarks	Intermediate sizes can be supplied on request Before using IFP geometry inserts with a drill above 5xD ratio, a pre-hole should be prepared by using a DFN 1.5xD to guide the drill (an endmill can be used)
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.1367
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3392193
Grade	IC908
Cutting Diameter (DC)	1-3/8"
Functional Length (LF)	0.567"
Insert Seat Size Code (SSC)	34.0
Protruding Length (LPR)	0.776"
Point Angle (SIG)	140 Degrees
Point Length (PL)	0.20902"
