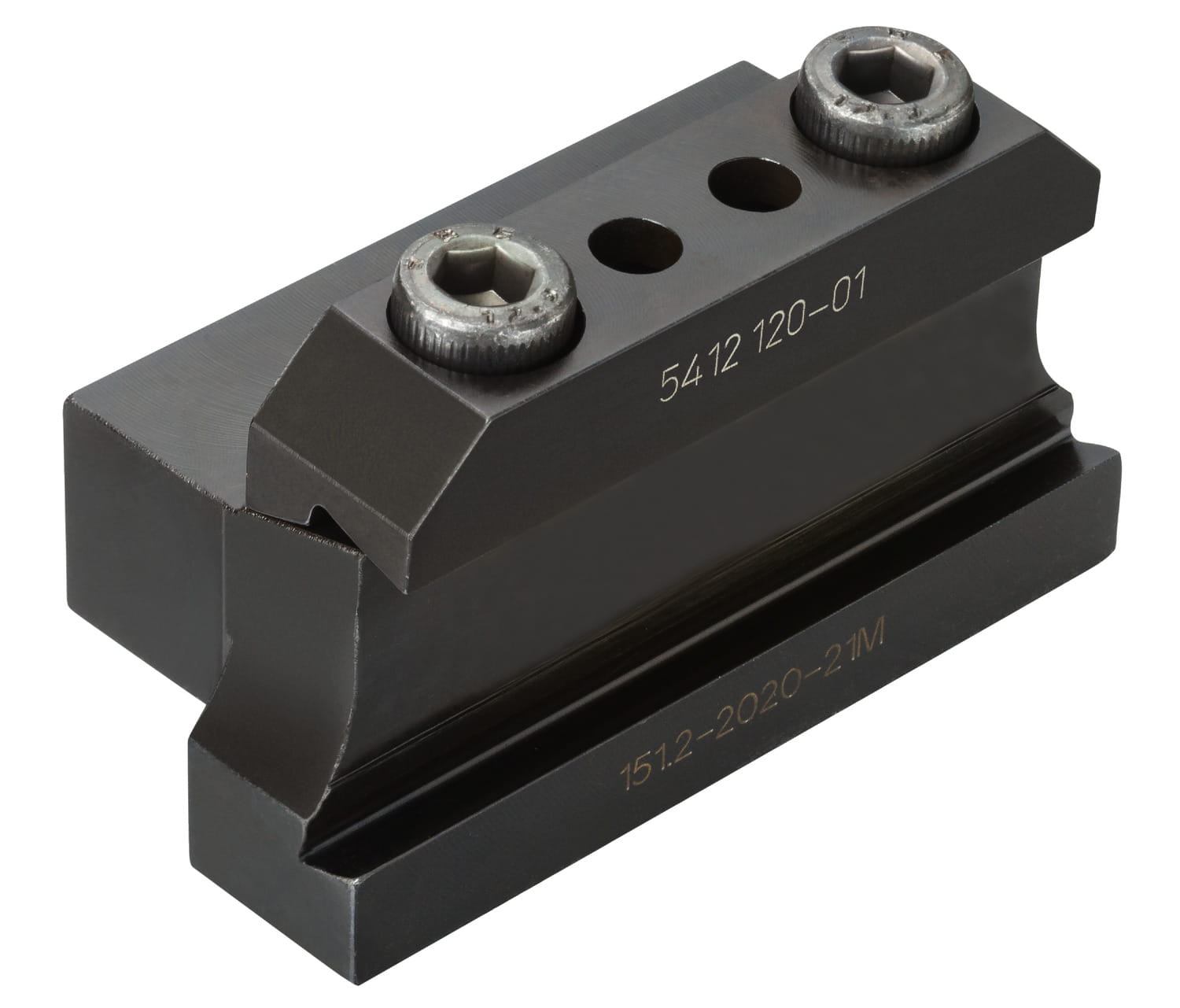

Imak blokowy do listew 151.2-16-25M ID:5757003 Sandvik
Dostępność:
duża ilość
Cena brutto:
1 765,05 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 435,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 599,00 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5757003
Opis
Imak blokowy do listew
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Imak blokowy do listew |
| Rodzina produktów | 1060 |
| Product Subfamily Code (Tsyc) | 151.2 (BLOCK-INCH) |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | IN |

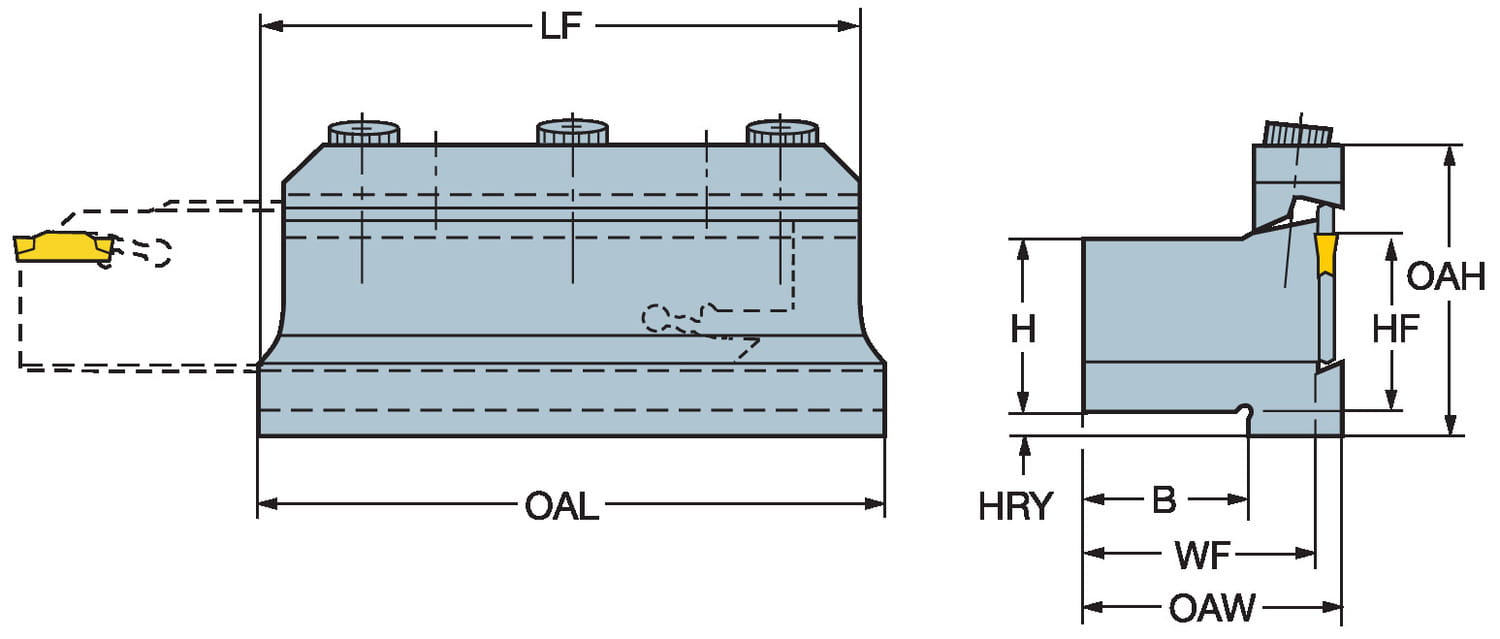

| Wymiary | |
| H Shank Height | 1 inch |
| H Shank Height | 25.4 mm |
| Lf Functional Length | 4.72008 inch |
| Lf Functional Length | 119.89 mm |
| Oah Overall Height | 1.79016 inch |
| Oah Overall Height | 45.47 mm |
| Oaw Overall Width | 1.70866 inch |
| Oaw Overall Width | 43.4 mm |
| Waga | 2.77783 lb |
| Waga | 1.26 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Rectangular shank -inch: 1 x 1 |
| Adintws Adaptive Interface Workpiece Direction | Parting off and grooving blade -size 25 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 0: without coolant |
| Cxsc Coolant Exit Style Code | 0: no coolant exit |
| Dpc Damping Property | no |
| Hand Hand | N |
| Ohx Maximum Overhang | 0.19685 inch |
| Ohx Maximum Overhang | 5 mm |
| Inne parametry | |
| Ean Number | 80015123 |
