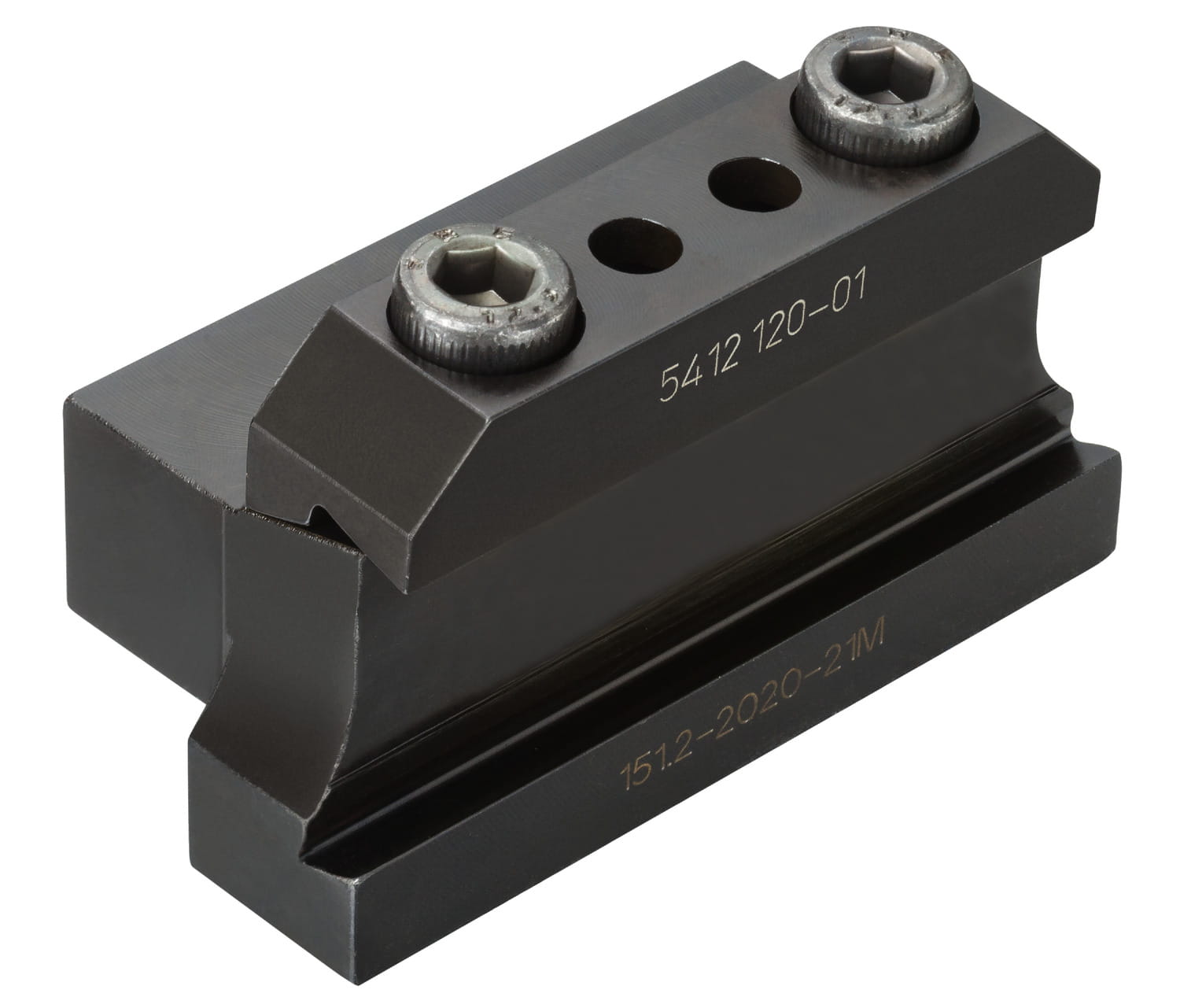

Imak blokowy do listew 151.2-2020-21M ID:5757014 Sandvik
Dostępność:
duża ilość
Cena brutto:
1 685,10 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 370,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 525,20 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5757014
Opis
Imak blokowy do listew
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Imak blokowy do listew |
| Rodzina produktów | 1060 |
| Product Subfamily Code (Tsyc) | 151.2 (BLOCK) |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | IN |

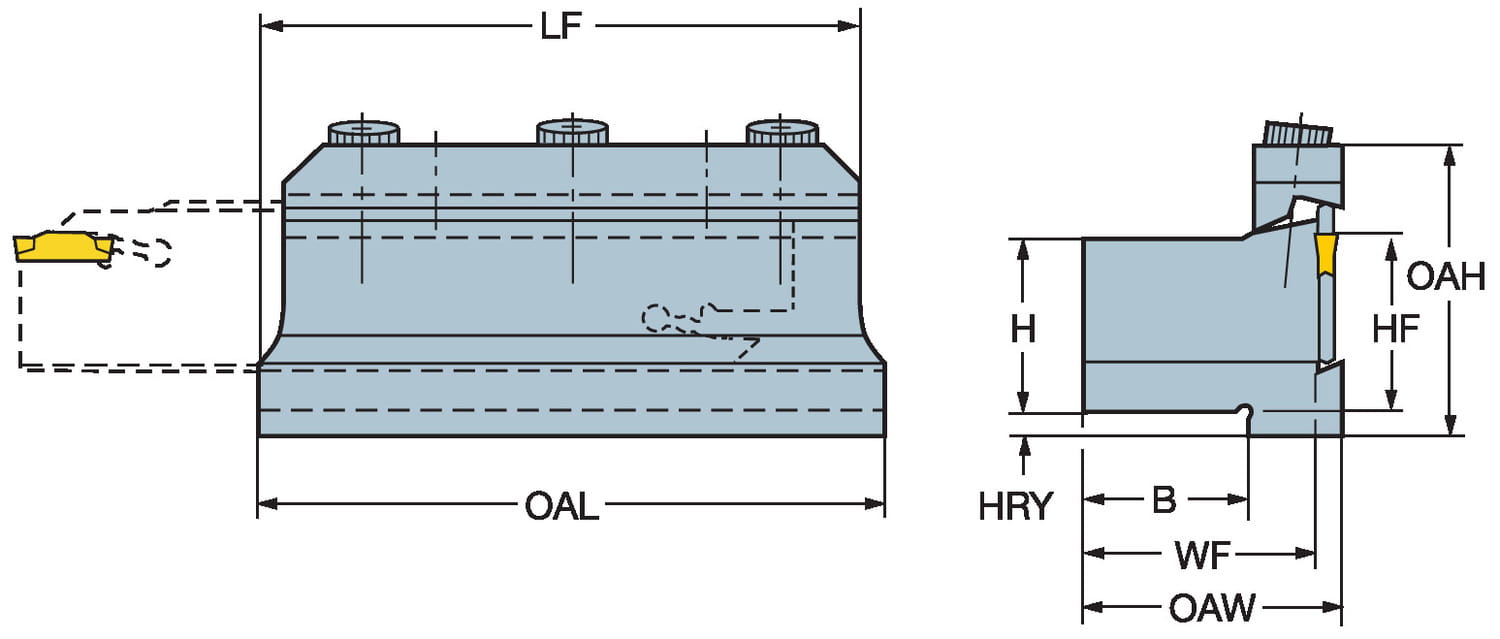

| Wymiary | |
| H Shank Height | 0.787402 inch |
| H Shank Height | 20 mm |
| Lf Functional Length | 3.14961 inch |
| Lf Functional Length | 80 mm |
| Oah Overall Height | 1.79134 inch |
| Oah Overall Height | 45.5 mm |
| Oaw Overall Width | 1.49606 inch |
| Oaw Overall Width | 38 mm |
| Waga | 1.40655 lb |
| Waga | 638 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Rectangular shank -metric: 20 x 20 |
| Adintws Adaptive Interface Workpiece Direction | Parting off and grooving blade -size 21 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 0: without coolant |
| Cxsc Coolant Exit Style Code | 0: no coolant exit |
| Dpc Damping Property | no |
| Hand Hand | N |
| Ohx Maximum Overhang | 0.19685 inch |
| Ohx Maximum Overhang | 5 mm |
| Inne parametry | |
| Ean Number | 10462222 |
