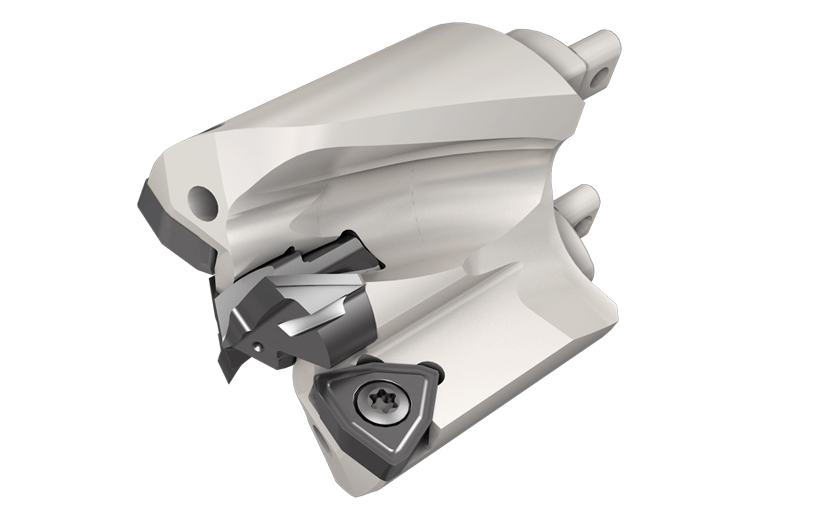

MD-MNC 1562-IMH36-0783-W6-Exchangeable drilling heads with IMH connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter

Dostępność: duża ilość

Cena brutto: 2 337,48 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2337.48

Cena netto: 1 900,39 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 597,20 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3463119

MD-MNC 1562-IMH36-0783-W6

Podstawowe informacje
FamilyName	MD-MNC-IMH
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3463119
ProductName	MD-MNC 1562-IMH36-0783-W6
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Exchangeable drilling heads with IMH connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter
FamilyShortDesc	Exchangeable IMH Drilling Heads with a Pilot SUMO-CHAM Head and Peripheral Trigon Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3463119
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.7385
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3463119
Cutting Diameter (DC)	1.562"
Decimal Equivalent	1.562"
Insert Seat Size Code (SSC)	6
Master Insert Identification (MIID)	ICP 0783-MNC 4F
Protruding Length (LPR)	1.496"
Point Length (PL)	0.181"
