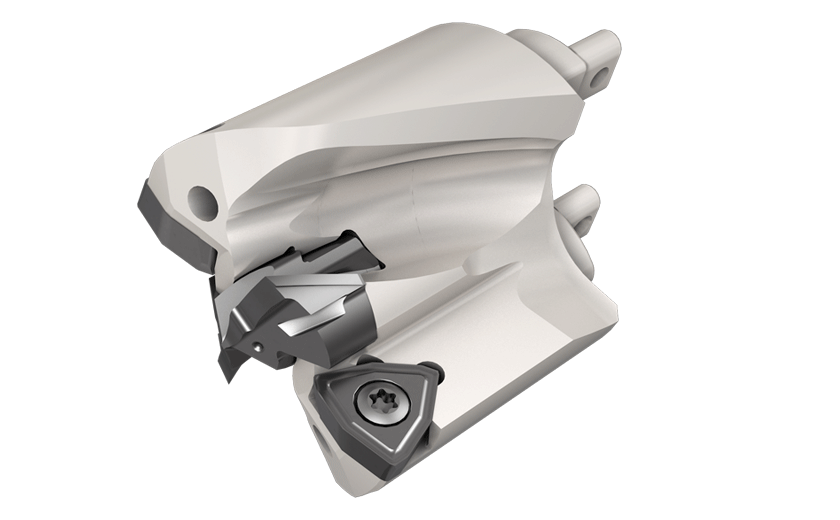

MD-MNC 1750-IMH40-0823-W7-Exchangeable drilling heads with IMH connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter

Dostępność: duża ilość

Cena brutto: 2 712,87 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2712.87

Cena netto: 2 205,59 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 014,30 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3463121

MD-MNC 1750-IMH40-0823-W7

Podstawowe informacje
FamilyName	MD-MNC-IMH
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3463121
ProductName	MD-MNC 1750-IMH40-0823-W7
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Exchangeable drilling heads with IMH connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter
FamilyShortDesc	Exchangeable IMH Drilling Heads with a Pilot SUMO-CHAM Head and Peripheral Trigon Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3463121
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.9766
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3463121
Cutting Diameter (DC)	1-3/4"
Decimal Equivalent	1.75"
Insert Seat Size Code (SSC)	7
Master Insert Identification (MIID)	ICP 0823-MNC 4F
Protruding Length (LPR)	1.705"
Point Length (PL)	0.197"
