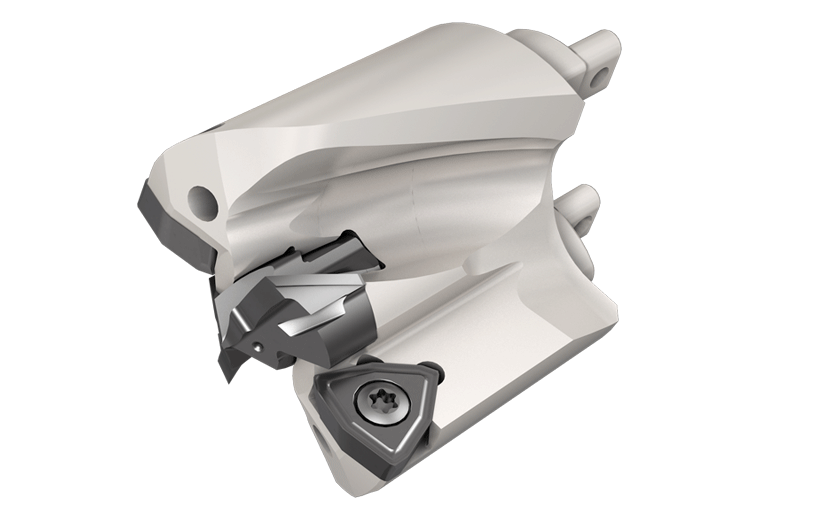

MD-MNC 1875-IMH45-0941-W7-Exchangeable drilling heads with IMH connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter

Dostępność: duża ilość

Cena brutto: 2 929,59 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2929.59

Cena netto: 2 381,78 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 255,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3463122

MD-MNC 1875-IMH45-0941-W7

Podstawowe informacje
FamilyName	MD-MNC-IMH
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3463122
ProductName	MD-MNC 1875-IMH45-0941-W7
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Exchangeable drilling heads with IMH connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter
FamilyShortDesc	Exchangeable IMH Drilling Heads with a Pilot SUMO-CHAM Head and Peripheral Trigon Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3463122
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	1.0803
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3463122
Cutting Diameter (DC)	1-7/8"
Decimal Equivalent	1.875"
Insert Seat Size Code (SSC)	7
Master Insert Identification (MIID)	ICP 0941-MNC 4F
Protruding Length (LPR)	1.728"
Point Length (PL)	0.22"
