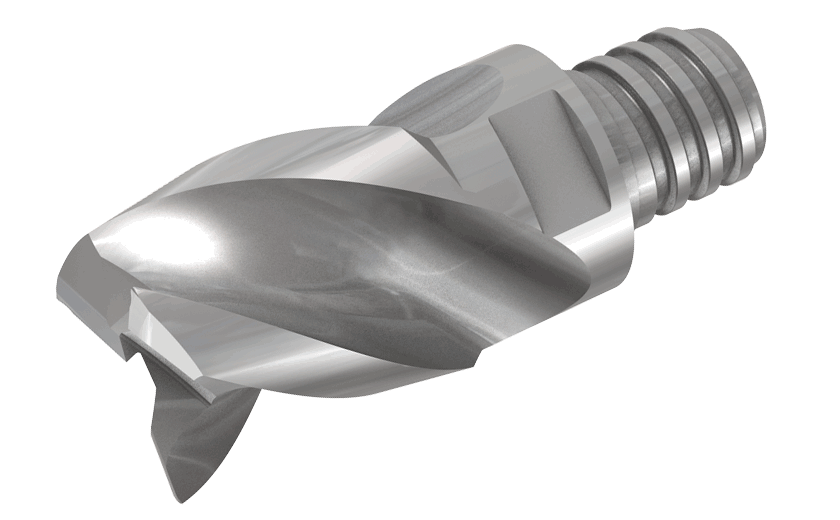

MM EA1.0H1.0R250-3T15 IC08-CHATTERFREE, MULTI-MASTER interchangeable solid carbide heads. 3 and 4 flute with 40° different helix, for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing
Dostępność:
duża ilość
Cena brutto:
785,61 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
638,71 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
872,90 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3405084
Opis
MM EA1.0H1.0R250-3T15 IC08
| Podstawowe informacje | |
|---|---|
| FamilyName | MM EA-CF |
| ToolType | Solid |
| Unit | I |
| PackSize | 1 |
| product_code | ISC3405084 |
| ProductName | MM EA1.0H1.0R250-3T15 IC08 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23241614 |
| FamilyDesc | CHATTERFREE, MULTI-MASTER interchangeable solid carbide heads. 3 and 4 flute with 40° different helix, for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing |
| FamilyShortDesc | Interchangeable Solid Carbide Endmill Heads with Different Helix for Machining Aluminum |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3405084 |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| APP1Name | Drill Mill |
| APP2Name | Helical Interpolation |
| APP3Name | Plunging & Recessing |
| APP4Name | Rampdown |
| APP5Name | Shouldering |
| APP6Name | Slotting |
| ItemRemark | |
| Coating | Uncoated |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Point Shape | |
| Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Standard | |
| Package Weight | 0.5445 |
| Style | |
| MSDS | 07999 |
| LocalField1 | 2 |
| Body Material | Carbide |
| ManufacturerNo | 3405084 |
| Grade | IC08 |
| Connection Diameter Machine Side (DCONMS) | 0.941" |
| Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Corner Radius (RE) | 1/4" |
| Cutting Diameter (DC) | 1" |
| Depth of Cut Maximum (APMX) | 1" |
| Flute Helix Angle (FHA) | 45 Degrees |
| Flute Count (NOF) | 3 |
| Functional Length (LF) | 1.032" |
| Maximum Feed per Tooth (fz(max)) | 0.0063 "/tooth |
| Minimum Feed per Tooth (fz(min)) | 0.0024 "/tooth |
| Overall Length (OAL) | 2.386" |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
