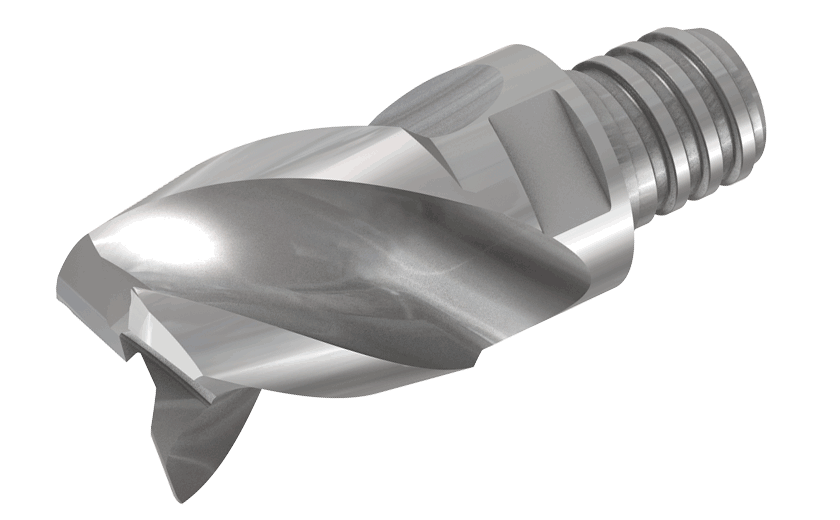

MM EA200H20R4CF-3T12 IC08-CHATTERFREE, MULTI-MASTER interchangeable solid carbide heads. 3 and 4 flute with 40° different helix, for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing
Dostępność:
duża ilość
Cena brutto:
990,44 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
805,24 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
653,60 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3424356
Opis
MM EA200H20R4CF-3T12 IC08
| Podstawowe informacje | |
|---|---|
| FamilyName | MM EA-CF |
| ToolType | Solid |
| Unit | M |
| PackSize | 2 |
| product_code | ISC3424356 |
| ProductName | MM EA200H20R4CF-3T12 IC08 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23241614 |
| FamilyDesc | CHATTERFREE, MULTI-MASTER interchangeable solid carbide heads. 3 and 4 flute with 40° different helix, for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing |
| FamilyShortDesc | Interchangeable Solid Carbide Endmill Heads with Different Helix for Machining Aluminum |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3424356 |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| APP1Name | Drill Mill |
| APP2Name | Helical Interpolation |
| APP3Name | Plunging & Recessing |
| APP4Name | Rampdown |
| APP5Name | Shouldering |
| APP6Name | Slotting |
| ItemRemark | |
| Coating | Uncoated |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Point Shape | |
| Measurement Type | Metric |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Standard | |
| Package Weight | 0.1175 |
| Style | |
| MSDS | 07999 |
| LocalField1 | 21 |
| Body Material | Carbide |
| ManufacturerNo | 3424356 |
| Grade | IC08 |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Connection Diameter Machine Side (DCONMS) | 18.45 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Corner Radius (RE) | 4 mm |
| Cutting Diameter (DC) | 20 mm |
| Cutting Diameter Maximum (DCX) | 20 mm |
| Depth of Cut Maximum (APMX) | 20 mm |
| Flute Helix Angle (FHA) | 40 Degrees |
| Flute Count (NOF) | 3 |
| Functional Length (LF) | 34 mm |
| Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Overall Length (OAL) | 47.8 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
