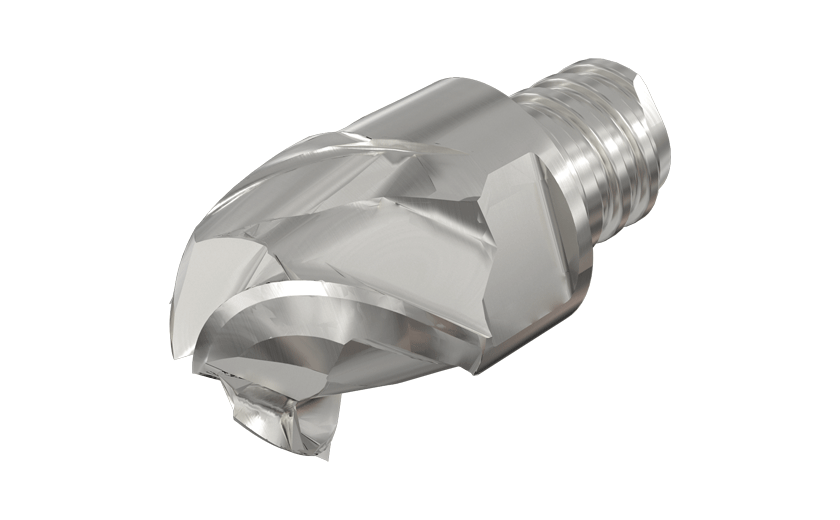

MM EBA.750H50-3T12 IC08-Interchangeable 3 flute high precision solid carbide ball nose heads for machining aluminum

Dostępność: duża ilość

Cena brutto: 522,45 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

522.45

Cena netto: 424,76 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 580,50 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3426967

MM EBA.750H50-3T12 IC08

Podstawowe informacje
FamilyName	MM EBA-3
ToolType	Solid
Unit	I
PackSize	2
product_code	ISC3426967
ProductName	MM EBA.750H50-3T12 IC08
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Interchangeable 3 flute high precision solid carbide ball nose heads for machining aluminum
FamilyShortDesc	Interchangeable 3 Flute High Precision Solid Carbide Ball Nose Heads for Machining Aluminum
Link	https://www.Iscar.com/ecat/e.asp?cat=3426967
Remarks	For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Profiling \|
APP1Name	Profiling
ItemRemark
Coating	Uncoated
Cutting Edge Material	Carbide
Tool Type	Solid ball nose
Point Shape
Measurement Type	Inch
Applicable Material	\| Aluminum / Non-Ferrous Materials \|
Thread Standard
Package Weight	0.2138
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3426967
Grade	IC08
Connection Diameter Machine Side (DCONMS)	0.719"
Connection Thread Nominal Size Machine Side (THSZMS)	T12
Corner Radius (RE)	3/8"
Cutting Diameter Maximum (DCX)	3/4"
Depth of Cut Maximum (APMX)	0.61"
Flute Helix Angle (FHA)	45 Degrees
Flute Count (NOF)	3
Functional Length (LF)	1.004"
