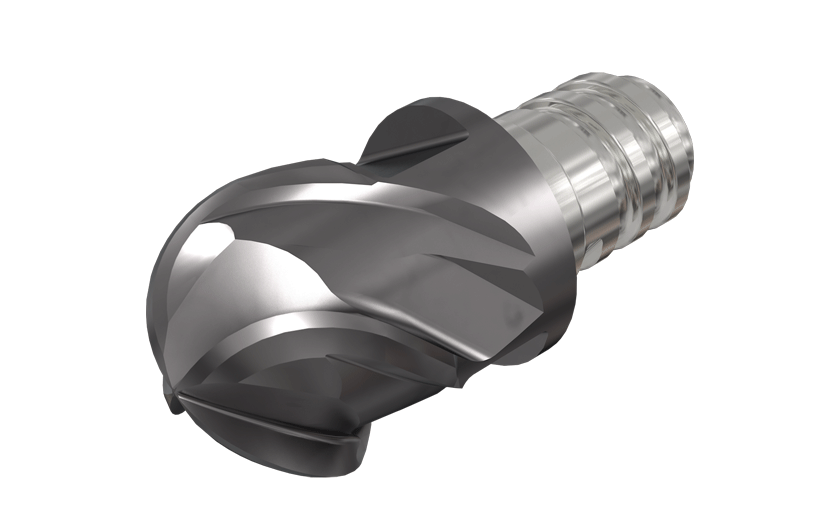

MM EBC.500B37-4T08CF IC903-MULTI-MASTER interchangeable solid carbide ball nose milling heads.

Dostępność: duża ilość

Cena brutto: 714,69 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

714.69

Cena netto: 581,05 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 481,60 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3326624

MM EBC.500B37-4T08CF IC903

Podstawowe informacje
FamilyName	MM EBC
ToolType	Solid
Unit	I
PackSize	2
product_code	ISC3326624
ProductName	MM EBC.500B37-4T08CF IC903
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	MULTI-MASTER interchangeable solid carbide ball nose milling heads.
FamilyShortDesc	Interchangeable Solid Carbide Ball Nose Milling Heads
Link	https://www.Iscar.com/ecat/e.asp?cat=3326624
Remarks	For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Profiling \|
APP1Name	Profiling
ItemRemark
Coating	AlTiN
Cutting Edge Material	Carbide
Tool Type	Solid ball nose
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0705
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3326624
Grade	IC903
Connection Code Machine Side (CCMS)	MultiMaster
Connection Diameter Machine Side (DCONMS)	0.49"
Connection Thread Nominal Size Machine Side (THSZMS)	T08
Corner Radius (RE)	0"
Cutting Diameter (DC)	1/2"
Depth of Cut Maximum (APMX)	0.37"
Flute Helix Angle (FHA)	45 Degrees
Flute Count (NOF)	4
Functional Length (LF)	0.65"
Overall Length (OAL)	0.963"
