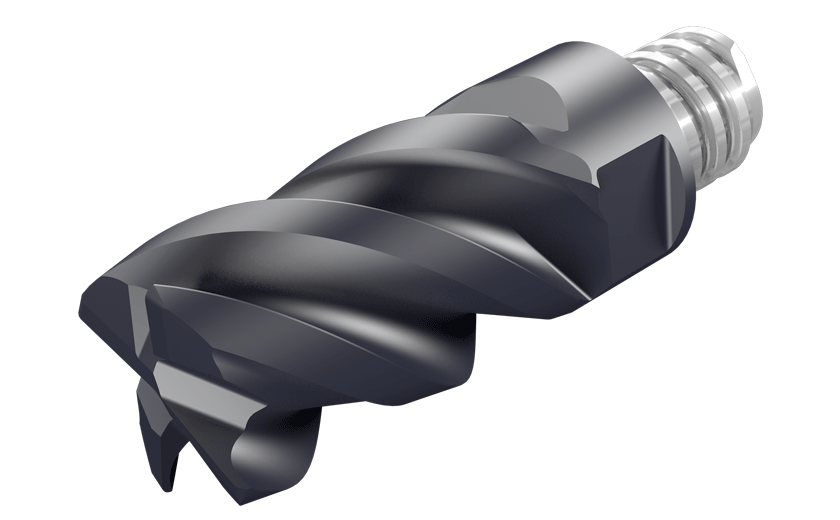

MM EC100H15R05CF-4T06 IC908-Interchangeable solid carbide heads with variable pitch and 1.5xD flute lengths for CHATTER-FREE roughing and finishing operations. High material removal rates
Dostępność:
duża ilość
Cena brutto:
703,44 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
571,90 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
473,00 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3336712
Opis
MM EC100H15R05CF-4T06 IC908
| Podstawowe informacje | |
|---|---|
| FamilyName | MM EC-Z4-1.5xD |
| ToolType | Solid |
| Unit | M |
| PackSize | 2 |
| product_code | ISC3336712 |
| ProductName | MM EC100H15R05CF-4T06 IC908 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23241614 |
| FamilyDesc | Interchangeable solid carbide heads with variable pitch and 1.5xD flute lengths for CHATTER-FREE roughing and finishing operations. High material removal rates |
| FamilyShortDesc | Interchangeable Solid Carbide Endmill Heads with 1.5xD Flute Lengths for CHATTER-FREE Roughing and Finishing |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3336712 |
| Remarks | For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| APP1Name | Drill Mill |
| APP2Name | Helical Interpolation |
| APP3Name | Plunging & Recessing |
| APP4Name | Rampdown |
| APP5Name | Shouldering |
| APP6Name | Slotting |
| ItemRemark | |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Point Shape | |
| Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | |
| Package Weight | 0.0260 |
| Style | |
| MSDS | 07999 |
| LocalField1 | 2 |
| Body Material | Carbide |
| ManufacturerNo | 3336712 |
| Grade | IC908 |
| Connection Diameter Machine Side (DCONMS) | 9.6 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 |
| Corner Radius (RE) | 0.5 mm |
| Cutting Diameter (DC) | 10 mm |
| Depth of Cut Maximum (APMX) | 15 mm |
| Flute Helix Angle (FHA) | 46.5 Degrees |
| Flute Count (NOF) | 4 |
| Functional Length (LF) | 22 mm |
| Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
