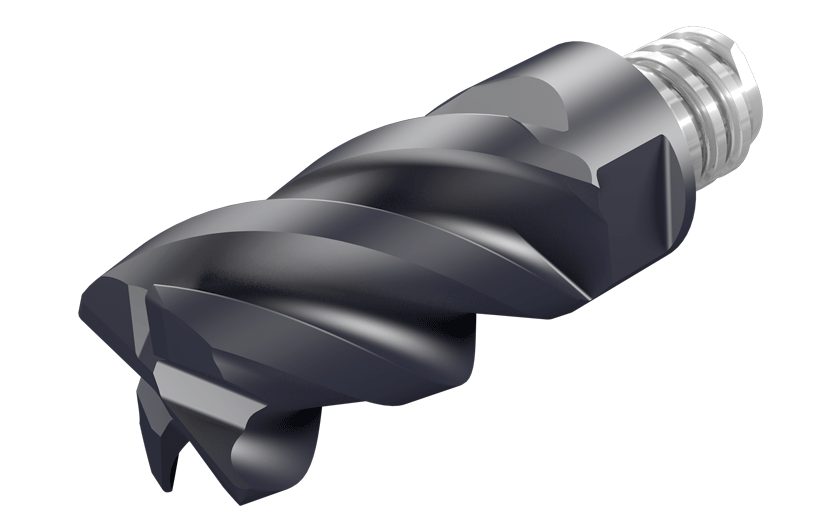

MM EC625H94R015CF-4T10 IC908-Interchangeable solid carbide heads with variable pitch and 1.5xD flute lengths for CHATTER-FREE roughing and finishing operations. High material removal rates
Dostępność:
duża ilość
Cena brutto:
828,18 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
673,32 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
920,20 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3336734
Opis
MM EC625H94R015CF-4T10 IC908
| Podstawowe informacje | |
|---|---|
| FamilyName | MM EC-Z4-1.5xD |
| ToolType | Solid |
| Unit | I |
| PackSize | 2 |
| product_code | ISC3336734 |
| ProductName | MM EC625H94R015CF-4T10 IC908 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23241614 |
| FamilyDesc | Interchangeable solid carbide heads with variable pitch and 1.5xD flute lengths for CHATTER-FREE roughing and finishing operations. High material removal rates |
| FamilyShortDesc | Interchangeable Solid Carbide Endmill Heads with 1.5xD Flute Lengths for CHATTER-FREE Roughing and Finishing |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3336734 |
| Remarks | For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| APP1Name | Drill Mill |
| APP2Name | Helical Interpolation |
| APP3Name | Plunging & Recessing |
| APP4Name | Rampdown |
| APP5Name | Shouldering |
| APP6Name | Slotting |
| ItemRemark | |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Point Shape | |
| Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | |
| Package Weight | 0.1973 |
| Style | |
| MSDS | 07999 |
| LocalField1 | 2 |
| Body Material | Carbide |
| ManufacturerNo | 3336734 |
| Grade | IC908 |
| Connection Diameter Machine Side (DCONMS) | 0.602" |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Corner Radius (RE) | 0.015" |
| Cutting Diameter (DC) | 5/8" |
| Depth of Cut Maximum (APMX) | 0.94" |
| Flute Helix Angle (FHA) | 46.5 Degrees |
| Flute Count (NOF) | 4 |
| Functional Length (LF) | 1.319" |
| Maximum Feed per Tooth (fz(max)) | 0.0051 "/tooth |
| Minimum Feed per Tooth (fz(min)) | 0.0019 "/tooth |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
