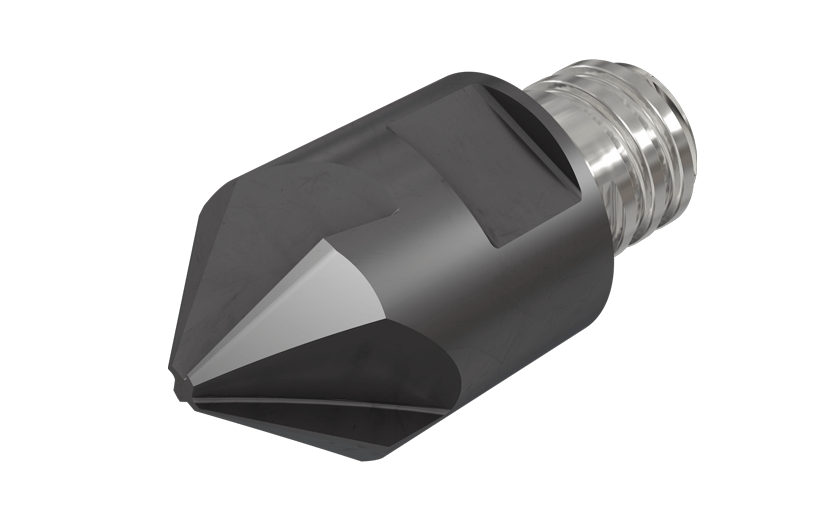

MM ECF45-080-4T05 IC908-MULTI-MASTER interchangeable solid carbide heads for chamfering and countersinking

Dostępność: duża ilość

Cena brutto: 382,11 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

382.11

Cena netto: 310,66 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 257,57 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3393225

MM ECF45-080-4T05 IC908

Podstawowe informacje
FamilyName	MM ECF
ToolType	Solid
Unit	M
PackSize	2
product_code	ISC3393225
ProductName	MM ECF45-080-4T05 IC908
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	MULTI-MASTER interchangeable solid carbide heads for chamfering and countersinking
FamilyShortDesc	Interchangeable Solid Carbide Heads for Chamfering and Countersinking
Link	https://www.Iscar.com/ecat/e.asp?cat=3393225
Remarks	For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Chamfering \| Countersinking \| Slanted Shoulder & Chamfer \|
APP1Name	Chamfering
APP2Name	Countersinking
APP3Name	Slanted Shoulder & Chamfer
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid chamfering endmills
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0140
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3393225
Grade	IC908
Connection Code Machine Side (CCMS)	MultiMaster
Connection Diameter Machine Side (DCONMS)	8 mm
Connection Thread Nominal Size Machine Side (THSZMS)	T05
Cutting Diameter (DC)	1.95 mm
Cutting Diameter Maximum (DCX)	8 mm
Depth of Cut Maximum (APMX)	3 mm
Flute Count (NOF)	4
Functional Length (LF)	10 mm
Tool Cutting Edge Angle (KAPR)	45 Degrees
