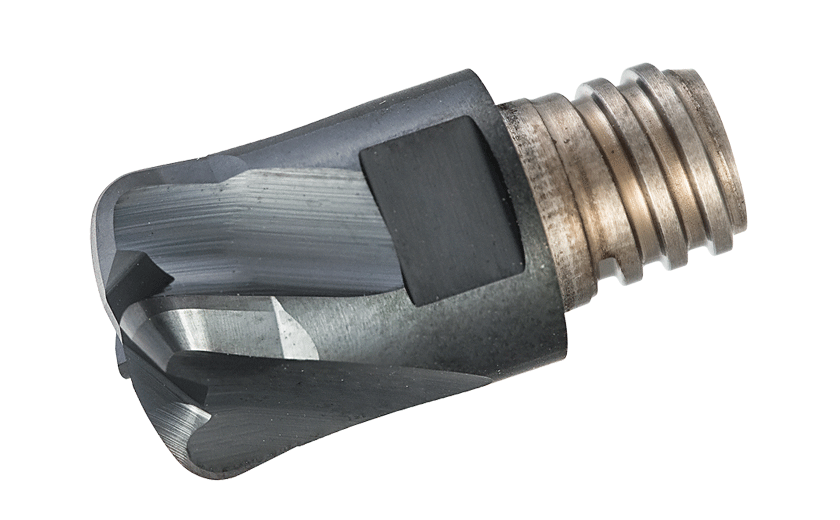

MM EFF120S3R1.2-6T08 IC903-Interchangeable solid carbide FEEDMILL heads with 4 or 6 flute, for milling at very high feed and small D.O.C.
Dostępność:
duża ilość
Cena brutto:
692,18 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
562,75 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
464,40 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3398653
Opis
MM EFF120S3R1.2-6T08 IC903
| Podstawowe informacje | |
|---|---|
| FamilyName | MM EFF |
| ToolType | Solid |
| Unit | M |
| PackSize | 2 |
| product_code | ISC3398653 |
| ProductName | MM EFF120S3R1.2-6T08 IC903 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23241614 |
| FamilyDesc | Interchangeable solid carbide FEEDMILL heads with 4 or 6 flute, for milling at very high feed and small D.O.C. |
| FamilyShortDesc | 4, 6 Flute Solid Carbide Heads for Milling at Very Fast Feeds and Small D.O.C. |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3398653 |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection Heads with coolant supply are recommended for shouldering operations |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Drill Mill | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | |
| APP1Name | Drill Mill |
| APP2Name | Fast Feed Milling |
| APP3Name | Helical Interpolation |
| APP4Name | Plunging & Recessing |
| APP5Name | Profiling |
| APP6Name | Rampdown |
| APP7Name | Shouldering |
| APP8Name | Slotting |
| ItemRemark | |
| Coating | AlTiN |
| Cutting Edge Material | Carbide |
| Tool Type | Fast Feed Solid Endmill |
| Point Shape | |
| Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | |
| Package Weight | 0.0330 |
| Style | |
| MSDS | 07999 |
| LocalField1 | 2 |
| Body Material | Carbide |
| ManufacturerNo | 3398653 |
| Grade | IC903 |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Connection Diameter Machine Side (DCONMS) | 11.5 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| Corner Radius (RE) | 1.2 mm |
| Cutting Diameter (DC) | 12 mm |
| Cutting Diameter Maximum (DCX) | 12 mm |
| Depth of Cut Maximum (APMX) | 0.65 mm |
| Flute Helix Angle (FHA) | 0 Degrees |
| Flute Count (NOF) | 6 |
| Functional Length (LF) | 16.5 mm |
| Maximum Feed per Tooth (fz(max)) | 0.67 mm/tooth |
| Minimum Feed per Tooth (fz(min)) | 0.16 mm/tooth |
| Overall Length (OAL) | 24.45 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Tool Cutting Edge Angle (KAPR) | 97 Degrees |
