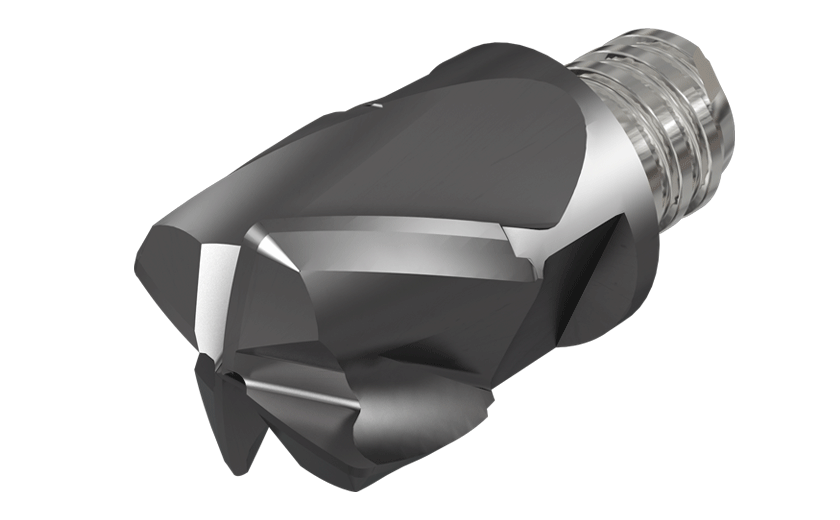

MM ELB375R750A27-4T06 IC908-Interchangeable lens-shaped (Barrel) solid carbide heads for 3D profiling.For semi-finish & finishing applications.

Dostępność: duża ilość

Cena brutto: 386,61 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

386.61

Cena netto: 314,32 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 429,57 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3378693

MM ELB375R750A27-4T06 IC908

Podstawowe informacje
FamilyName	MM ELB
ToolType	Solid
Unit	I
PackSize	2
product_code	ISC3378693
ProductName	MM ELB375R750A27-4T06 IC908
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Interchangeable lens-shaped (Barrel) solid carbide heads for 3D profiling.For semi-finish & finishing applications.
FamilyShortDesc	Interchangeable Lens-Shaped (Barrel) Solid Carbide Heads for 3D Profiling
Link	https://www.Iscar.com/ecat/e.asp?cat=3378693
Remarks	For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Profiling \|
APP1Name	Profiling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0419
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3378693
Grade	IC908
Connection Diameter Machine Side (DCONMS)	3/8"
Connection Thread Nominal Size Machine Side (THSZMS)	T06
Corner Radius (RE)	0.039"
Cutting Diameter (DC)	3/8"
Depth of Cut Maximum (APMX)	0.0548"
Flute Count (NOF)	4
Functional Length (LF)	0.512"
Maximum Feed per Tooth (fz(max))	0.012 "/tooth
Minimum Feed per Tooth (fz(min))	0.0028 "/tooth
Overall Length (OAL)	0.774"
Tool Cutting Edge Angle (KAPR)	90 Degrees
