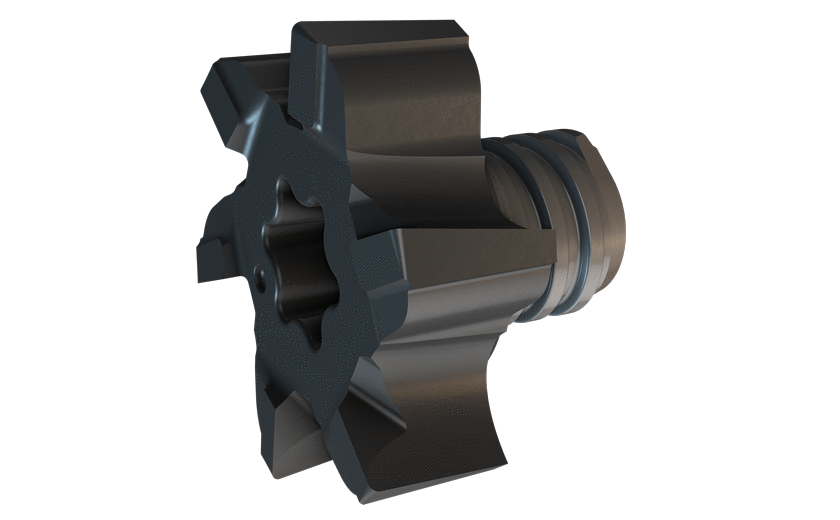

MM FM100-36R0.2-06T05 IC908-Interchangeable solid carbide face milling heads with MULTI-MASTER threaded connections.

Dostępność: duża ilość

Cena brutto: 381,54 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

381.54

Cena netto: 310,20 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 257,14 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3393224

MM FM100-36R0.2-06T05 IC908

Podstawowe informacje
FamilyName	MM FM
ToolType	Solid
Unit	M
PackSize	2
product_code	ISC3393224
ProductName	MM FM100-36R0.2-06T05 IC908
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Interchangeable solid carbide face milling heads with MULTI-MASTER threaded connections.
FamilyShortDesc	Interchangeable Solid Carbide Face Milling Heads with MULTI-MASTER Threaded Connections
Link	https://www.Iscar.com/ecat/e.asp?cat=3393224
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Shouldering \|
APP1Name	Facing
APP2Name	Shouldering
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid "T" slot cutters
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0115
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3393224
Grade	IC908
Connection Code Machine Side (CCMS)	MultiMaster
Connection Thread Nominal Size Machine Side (THSZMS)	T05
Corner Radius (RE)	0.2 mm
Cutting Diameter (DC)	10 mm
Depth of Cut Maximum (APMX)	3.6 mm
Flute Count (NOF)	6
Functional Length (LF)	4.4 mm
Maximum Feed per Tooth (fz(max))	0.1 mm/tooth
Minimum Feed per Tooth (fz(min))	0.04 mm/tooth
Ramping Angle Maximum (RMPX)	0 Degrees
Tool Cutting Edge Angle (KAPR)	90 Degrees
