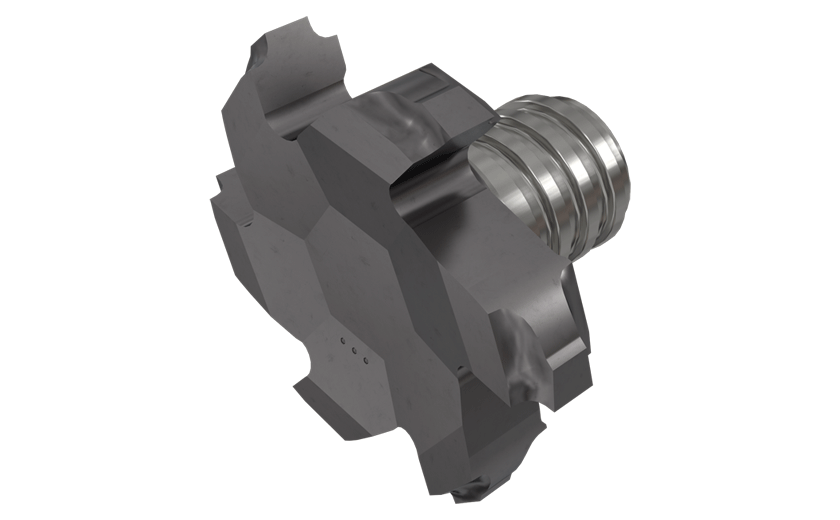

MM GRIT 28P-2.6-DR2.0 IC908-Interchangeable 6 flute solid carbide double-sided corner round milling heads

Dostępność: duża ilość

Cena brutto: 776,59 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

776.59

Cena netto: 631,37 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 516,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3413923

MM GRIT 28P-2.6-DR2.0 IC908

Podstawowe informacje
FamilyName	MM GRIT 28P-DR
ToolType	Solid
Unit	M
PackSize	2
product_code	ISC3413923
ProductName	MM GRIT 28P-2.6-DR2.0 IC908
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Interchangeable 6 flute solid carbide double-sided corner round milling heads
FamilyShortDesc	Interchangeable 6 Flute Solid Carbide Double-Sided Corner Round Milling Heads
Link	https://www.Iscar.com/ecat/e.asp?cat=3413923
Remarks	For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Corner Rounding \|
APP1Name	Corner Rounding
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0640
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3413923
Grade	IC908
Connection Code Machine Side (CCMS)	MultiMaster
Connection Diameter Machine Side (DCONMS)	15.3 mm
Connection Thread Nominal Size Machine Side (THSZMS)	T10
Corner Radius (RE)	2 mm
Cutting Diameter (DC)	22.9 mm
Cutting Diameter Maximum (DCX)	27.7 mm
Cutting Width (CW)	7.3 mm
Flute Count (NOF)	6
Functional Length (LF)	7.7 mm
Overall Length (OAL)	19.45 mm
