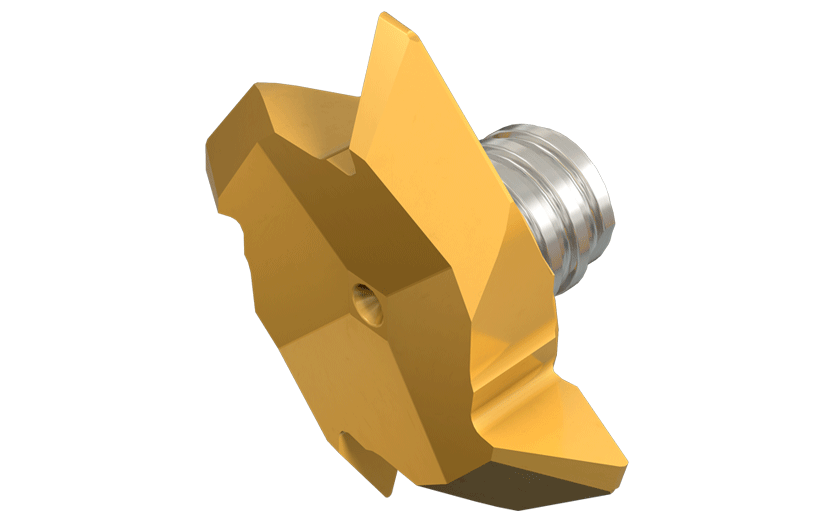

MM TRD22-W55-14P-4T08 IC908-Interchangeable solid carbide milling heads for 55° partial profile thread milling

Dostępność: duża ilość

Cena brutto: 217,11 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

217.11

Cena netto: 176,51 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 241,23 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3415200

MM TRD22-W55-14P-4T08 IC908

Podstawowe informacje
FamilyName	MM TRD-W
ToolType	Solid
Unit	M
PackSize	2
product_code	ISC3415200
ProductName	MM TRD22-W55-14P-4T08 IC908
COO	Israel
UOM	EA
UNSPSC	23242117
FamilyDesc	Interchangeable solid carbide milling heads for 55° partial profile thread milling
FamilyShortDesc	Interchangeable Solid Carbide Milling Heads for 55° Partial Profile Thread Milling
Link	https://www.Iscar.com/ecat/e.asp?cat=3415200
Remarks	For clamping keys (should be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection B.S.84 Internal & External tolerance: Medium class
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	Internal Thread Milling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid carbide thread mills
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0220
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3415200
Grade	IC908
Connection Code Machine Side (CCMS)	MultiMaster
Connection Thread Nominal Size Machine Side (THSZMS)	T08
Corner Radius (RE)	0.2 mm
Cutting Diameter (DC)	21.7 mm
Flute Count (NOF)	4
Overall Length (OAL)	12.66 mm
Standard	DIN ISO 228, B.S. 84
Thread Diameter Size (TDZ)	G3/4
Thread Form Type (THFT)	WH55
