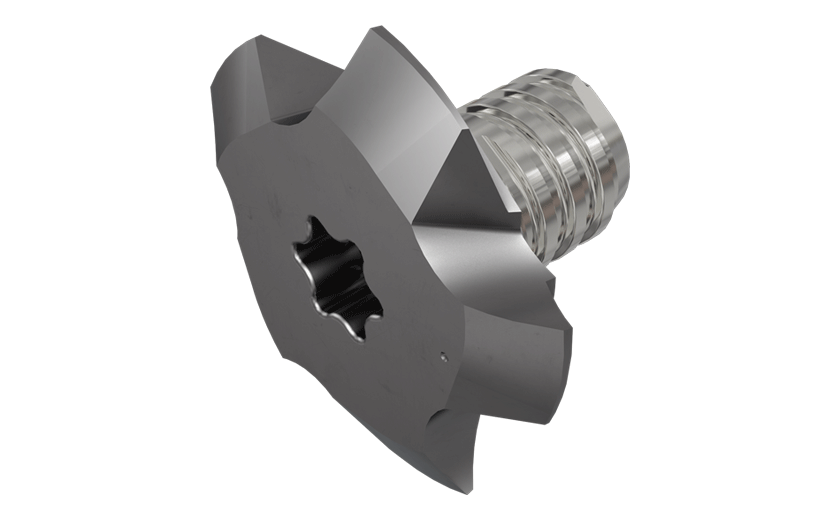

MM TRF20-W55-P6-6T08 IC908-Interchangeable solid carbide milling heads for 55° partial profile thread milling

Dostępność: duża ilość

Cena brutto: 574,00 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

574.00

Cena netto: 466,67 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 388,29 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3347969

MM TRF20-W55-P6-6T08 IC908

Podstawowe informacje
FamilyName	MM TRF 55°
ToolType	Solid
Unit	M
PackSize	2
product_code	ISC3347969
ProductName	MM TRF20-W55-P6-6T08 IC908
COO	Israel
UOM	EA
UNSPSC	23242117
FamilyDesc	Interchangeable solid carbide milling heads for 55° partial profile thread milling
FamilyShortDesc	Interchangeable Solid Carbide Milling Heads for 55° Partial Profile Thread Milling
Link	https://www.Iscar.com/ecat/e.asp?cat=3347969
Remarks	For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	Internal Thread Milling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0230
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3347969
Grade	IC908
Connection Code Machine Side (CCMS)	MultiMaster
Connection Thread Nominal Size Machine Side (THSZMS)	T08
Standard	DIN/ISO 228, B.S. 84
Thread Form Type (THFT)	WH55
