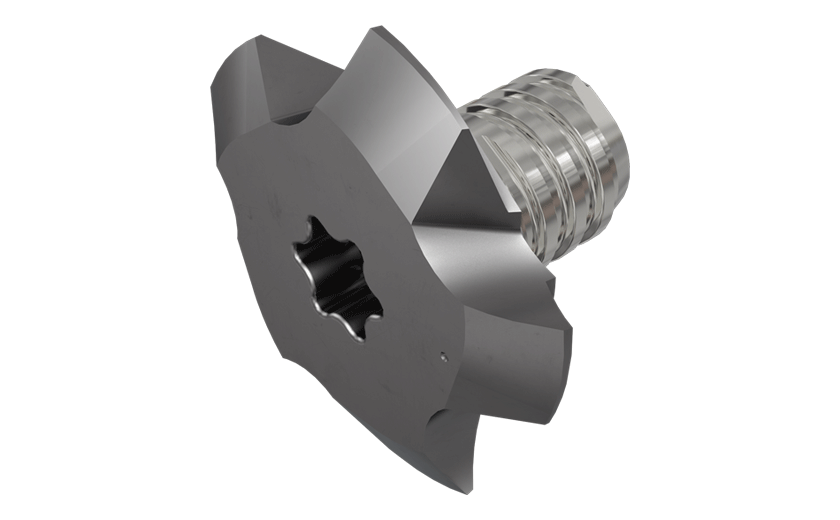

MM TRF20A60-P400-6T08 IC908-Interchangeable solid carbide milling heads for 60° partial profile thread milling

Dostępność: duża ilość

Cena brutto: 349,46 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

349.46

Cena netto: 284,11 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 388,29 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3311839

MM TRF20A60-P400-6T08 IC908

Podstawowe informacje
FamilyName	MM TRF 60°
ToolType	Solid
Unit	M
PackSize	2
product_code	ISC3311839
ProductName	MM TRF20A60-P400-6T08 IC908
COO	Israel
UOM	EA
UNSPSC	23242117
FamilyDesc	Interchangeable solid carbide milling heads for 60° partial profile thread milling
FamilyShortDesc	Interchangeable Solid Carbide Milling Heads for 60° Partial Profile Thread Milling
Link	https://www.Iscar.com/ecat/e.asp?cat=3311839
Remarks	For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	Internal Thread Milling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0230
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3311839
Grade	IC908
Connection Code Machine Side (CCMS)	MultiMaster
Connection Thread Nominal Size Machine Side (THSZMS)	T08
Standard	ISO 68, DIN 13
Thread Form Type (THFT)	VP60
