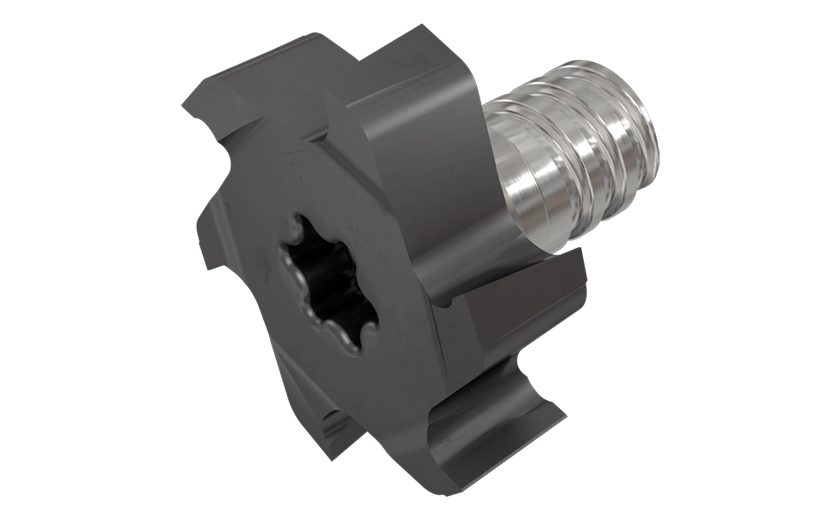

MM TS195-H60D-06T08 IC908-Interchangeable solid carbide T-Slot milling heads with diverse corner radii and MULTI-MASTER threaded adaptation

Dostępność: duża ilość

Cena brutto: 486,22 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

486.22

Cena netto: 395,30 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 327,66 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3383513

MM TS195-H60D-06T08 IC908

Podstawowe informacje
FamilyName	MM TS-H
ToolType	Solid
Unit	M
PackSize	2
product_code	ISC3383513
ProductName	MM TS195-H60D-06T08 IC908
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Interchangeable solid carbide T-Slot milling heads with diverse corner radii and MULTI-MASTER threaded adaptation
FamilyShortDesc	Interchangeable Solid Carbide T-Slot Milling Heads with Diverse Corner Radii
Link	https://www.Iscar.com/ecat/e.asp?cat=3383513
Remarks	Inserts in 5 mm and wider feature chip splitting edges For tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Internal Groove Milling \| Side Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Internal Groove Milling
APP3Name	Side Slotting
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid "T" slot cutters
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0285
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3383513
Grade	IC908
Connection Code Machine Side (CCMS)	MultiMaster
Connection Thread Nominal Size Machine Side (THSZMS)	T08
Corner Radius (RE)	0.4 mm
Cutting Diameter (DC)	19.5 mm
Cutting Depth Maximum (CDX)	3.45 mm
Cutting Width (CW)	6 mm
Flute Count (NOF)	6
Overall Length (OAL)	14.1 mm
Tool Cutting Edge Angle (KAPR)	90 Degrees
