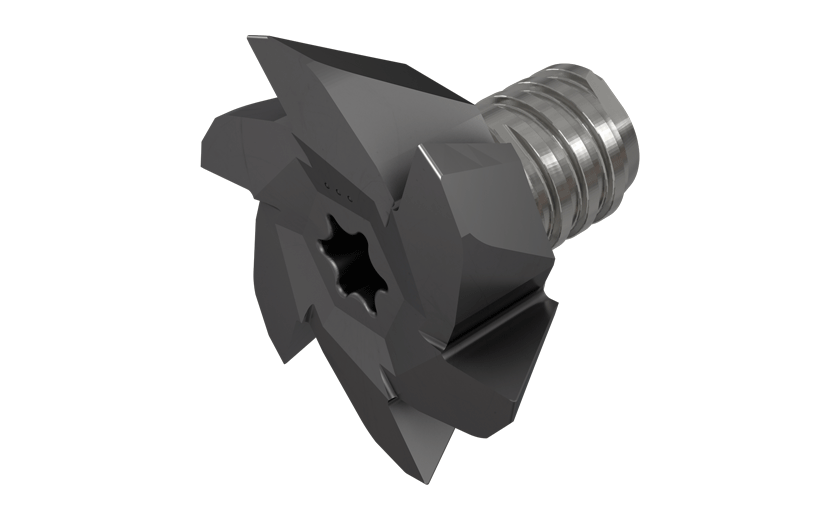

MM TS225-60D-06T08 IC908-Interchangeable solid carbide dovetail groove milling heads.

Dostępność: duża ilość

Cena brutto: 635,91 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

635.91

Cena netto: 517,00 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 428,28 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3452577

MM TS225-60D-06T08 IC908

Podstawowe informacje
FamilyName	MM Dovetail
ToolType	Solid
Unit	M
PackSize	2
product_code	ISC3452577
ProductName	MM TS225-60D-06T08 IC908
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Interchangeable solid carbide dovetail groove milling heads.
FamilyShortDesc	Interchangeable Solid Carbide Heads
Link	https://www.Iscar.com/ecat/e.asp?cat=3452577
Remarks	Use carbide shanks for groove milling heads
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Chamfering & Bottom Deburring \| Side Slotting \|
APP1Name	Chamfering & Bottom Deburring
APP2Name	Side Slotting
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid chamfering endmills
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0315
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3452577
Grade	IC908
Connection Thread Nominal Size Machine Side (THSZMS)	T08
Corner Radius (RE)	0.2 mm
Cutting Diameter (DC)	22.5 mm
Cutting Depth Maximum (CDX)	3.79 mm
Cutting Width (CW)	6.7 mm
Flute Count (NOF)	6
Tool Cutting Edge Angle (KAPR)	120 Degrees
