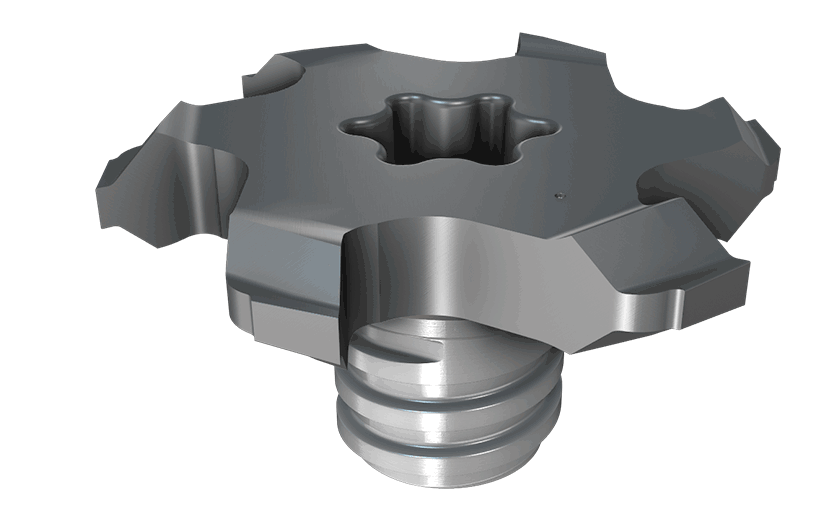

MM TS225C138T070-6T08 IC928-Interchangeable solid carbide groove milling heads for standard circlips conform to DIN 471/472.

Dostępność: duża ilość

Cena brutto: 316,57 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

316.57

Cena netto: 257,37 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 351,74 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3327625

MM TS225C138T070-6T08 IC928

Podstawowe informacje
FamilyName	MM TS-C
ToolType	Solid
Unit	M
PackSize	2
product_code	ISC3327625
ProductName	MM TS225C138T070-6T08 IC928
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Interchangeable solid carbide groove milling heads for standard circlips conform to DIN 471/472.
FamilyShortDesc	Interchangeable Solid Carbide Circlip Groove Milling Heads Conform to DIN 471/472
Link	https://www.Iscar.com/ecat/e.asp?cat=3327625
Remarks	For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Internal Groove Milling \|
APP1Name	Internal Groove Milling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0230
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	3327625
Grade	IC928
Connection Diameter Machine Side (DCONMS)	11.7 mm
Connection Thread Nominal Size Machine Side (THSZMS)	T08
Corner Radius (RE)	0.05 mm
Cutting Diameter (DC)	22.5 mm
Cutting Depth Maximum (CDX)	0.7 mm
Cutting Width (CW)	1.38 mm
Flute Count (NOF)	6
Functional Length (LF)	3.08 mm
Overall Length (OAL)	9.48 mm
