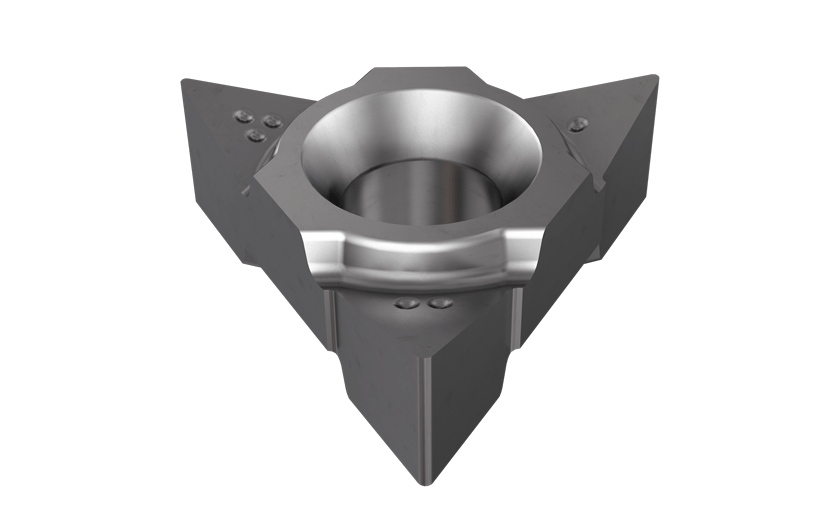

MT TNCT 11U 60D 908-60° partial profile laydown U-type thread milling inserts, for general industry

Dostępność: duża ilość

Cena brutto: 147,51 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

147.51

Cena netto: 119,93 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 113,52 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3323930

MT TNCT 11U 60D 908

Podstawowe informacje
FamilyName	MT TNCT-U60
ToolType	Insert
Unit	M
PackSize	5
product_code	ISC3323930
ProductName	MT TNCT 11U 60D 908
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	60° partial profile laydown U-type thread milling inserts, for general industry
FamilyShortDesc	60° Partial Profile Laydown U-Type Thread Milling Inserts, for General Industry
Link	https://www.Iscar.com/ecat/e.asp?cat=3323930
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	Internal Thread Milling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0028
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3323930
Grade	IC908
Cutting Direction (HAND)	Neutral
Inscribed Circle Diameter (IC)	6.35 mm
Insert Length (INSL)	11 mm
Profile Distance EY (PDY)	0 mm
Thread Form Type (THFT)	VP60
Thread Pitch (TP)	0 mm
Threads per Inch (TPI)	0
Threads per Inch Maximum (TPIX)	10
Threads per Inch Minimum (TPIN)	6
