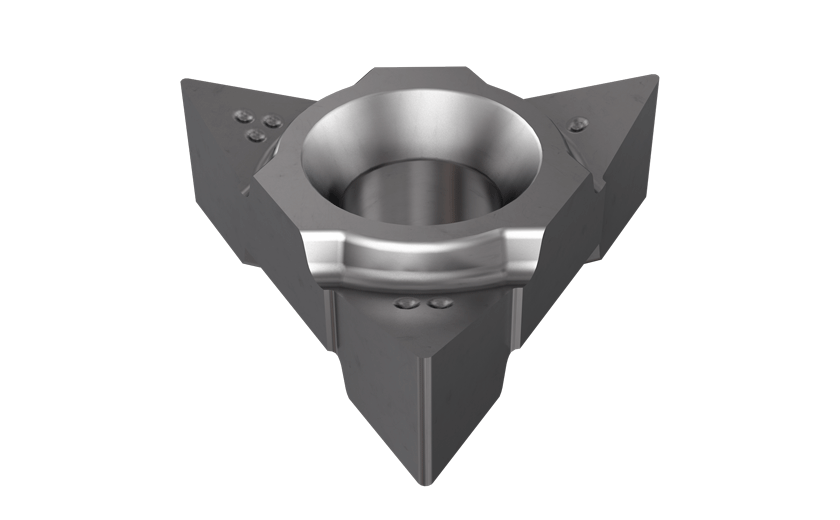

MT TNCT 16U 55D 908-55° partial profile laydown U-type thread milling inserts, for general industry

Dostępność: duża ilość

Cena brutto: 147,51 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

147.51

Cena netto: 119,93 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 113,52 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3323953

MT TNCT 16U 55D 908

Podstawowe informacje
FamilyName	MT TNCT-U55
ToolType	Insert
Unit	M
PackSize	5
product_code	ISC3323953
ProductName	MT TNCT 16U 55D 908
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	55° partial profile laydown U-type thread milling inserts, for general industry
FamilyShortDesc	55° Partial Profile Laydown U-Type Thread Milling Inserts, for General Industry
Link	https://www.Iscar.com/ecat/e.asp?cat=3323953
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	Internal Thread Milling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0052
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3323953
Grade	IC908
Cutting Direction (HAND)	Neutral
Inscribed Circle Diameter (IC)	9.52 mm
Insert Length (INSL)	16.49 mm
Thread Form Type (THFT)	VP55
Threads per Inch Maximum (TPIX)	6
Threads per Inch Minimum (TPIN)	4.5
