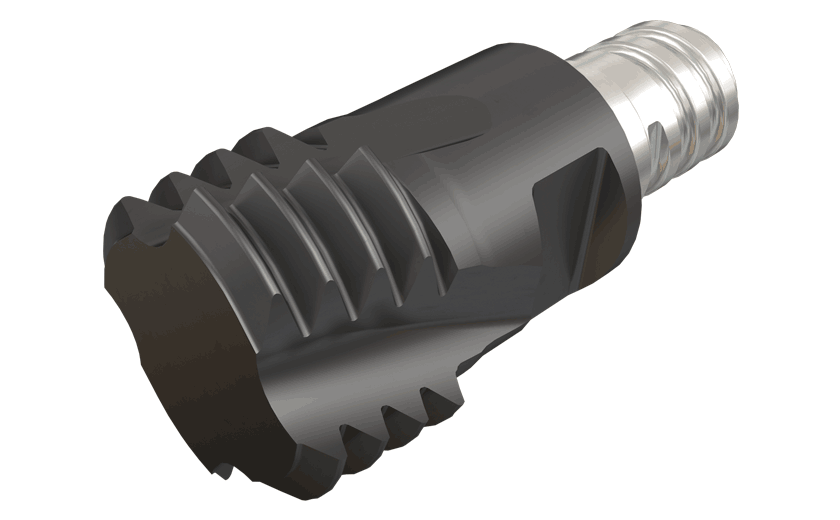

MT15.4E13 2.5ISO-MMT08 IC908-Carbide milling heads with a threaded (MULTI-MASTER) connection for internal ISO metric thread.

Dostępność: duża ilość

Cena brutto: 1 443,51 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1443.51

Cena netto: 1 173,59 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 603,90 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3311811

MT15.4E13 2.5ISO-MMT08 IC908

Podstawowe informacje
FamilyName	MT-ISO-MM
ToolType	Solid
Unit	M
PackSize	2
product_code	ISC3311811
ProductName	MT15.4E13 2.5ISO-MMT08 IC908
COO	Israel
UOM	EA
UNSPSC	23242117
FamilyDesc	Carbide milling heads with a threaded (MULTI-MASTER) connection for internal ISO metric thread.
FamilyShortDesc	Carbide Milling Heads with a Threaded Connection for Internal ISO Metric Thread
Link	https://www.Iscar.com/ecat/e.asp?cat=3311811
Remarks	Note: Description and dimensions relate to the new products with clamping flats For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Internal Thread Milling \|
APP1Name	Internal Thread Milling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid carbide thread mills
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	MC \|MF \|THFT \|
Package Weight	0.0440
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3311811
Grade	IC908
Connection Code Machine Side (CCMS)	MultiMaster
Connection Thread Nominal Size Machine Side (THSZMS)	T08
Cutting Diameter (DC)	15.4 mm
Flute Count (NOF)	5
Functional Length (LF)	20 mm
Overall Length (OAL)	27.95 mm
Thread Diameter Size (TDZ)	M20
Thread Form Type (THFT)	M60
