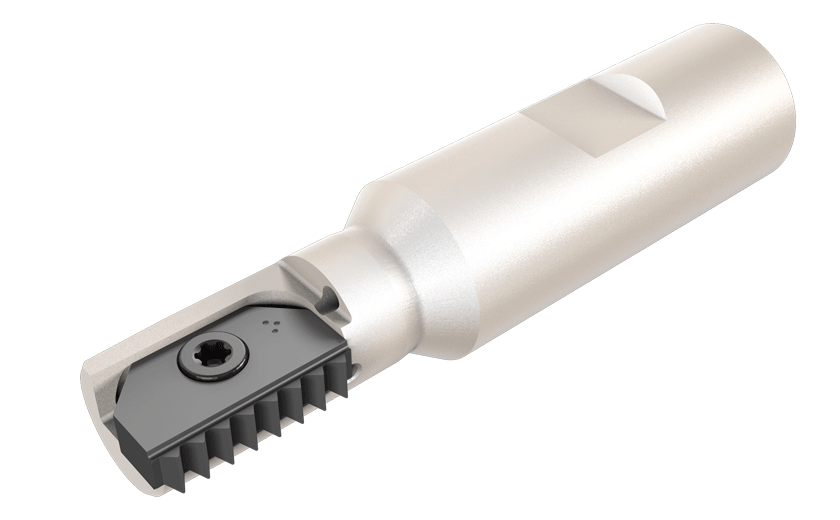

MTE D1.16-1-W1.00-30-Indexable threading endmills with Weldon shank and coolant holes.

Dostępność: duża ilość

Cena brutto: 1 517,04 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1517.04

Cena netto: 1 233,37 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 685,60 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3323480

MTE D1.16-1-W1.00-30

Podstawowe informacje
FamilyName	MTE D
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3323480
ProductName	MTE D1.16-1-W1.00-30
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Indexable threading endmills with Weldon shank and coolant holes.
FamilyShortDesc	Indexable Threading Endmills
Link	https://www.Iscar.com/ecat/e.asp?cat=3323480
Remarks	Tool cutting diameter should not exceed 2/3 of thread bore diameter All endmills are equipped with a bore for internal coolant
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	Internal Thread Milling
ItemRemark
Tool Type	Indexable thread mills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.9656
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3323480
Body Diameter (BD)	0.874"
Connection Code Machine Side (CCMS)	Weldon
Connection Diameter Machine Side (DCONMS)	1"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	1.156"
Depth of Cut Maximum (APMX)	1.181"
Flute Count (NOF)	1
Overall Length (OAL)	4-1/4"
Shank Type	Weldon
Usable Length (LU)	1.96"
