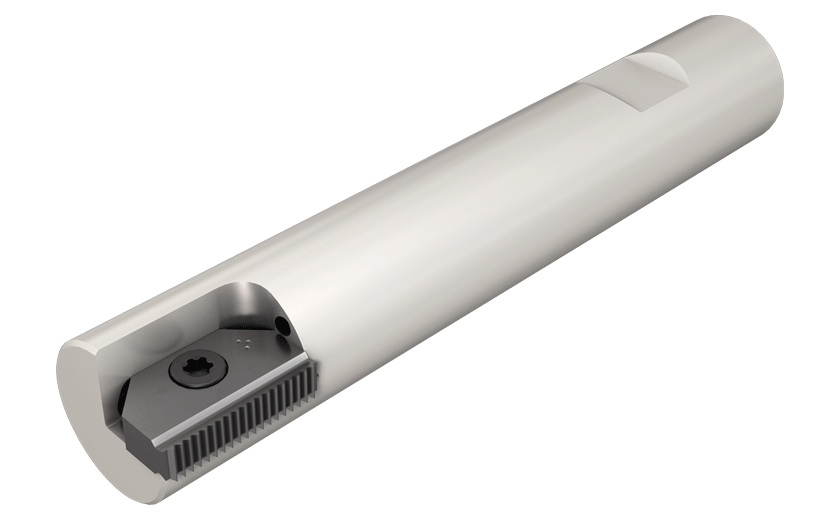

MTE D1.50-1-W1.25-30-Indexable threading endmills with Weldon shank and coolant holes.

Dostępność: duża ilość

Cena brutto: 1 625,40 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1625.40

Cena netto: 1 321,46 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 806,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3323481

MTE D1.50-1-W1.25-30

Podstawowe informacje
FamilyName	MTE D
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3323481
ProductName	MTE D1.50-1-W1.25-30
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Indexable threading endmills with Weldon shank and coolant holes.
FamilyShortDesc	Indexable Threading Endmills
Link	https://www.Iscar.com/ecat/e.asp?cat=3323481
Remarks	Tool cutting diameter should not exceed 2/3 of thread bore diameter All endmills are equipped with a bore for internal coolant
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	Internal Thread Milling
ItemRemark
Tool Type	Indexable thread mills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.7937
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3323481
Body Diameter (BD)	0"
Connection Code Machine Side (CCMS)	Weldon
Connection Diameter Machine Side (DCONMS)	1-1/4"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	1-1/2"
Depth of Cut Maximum (APMX)	1.181"
Flute Count (NOF)	1
Overall Length (OAL)	6"
Shank Type	Weldon
Usable Length (LU)	3.58"
