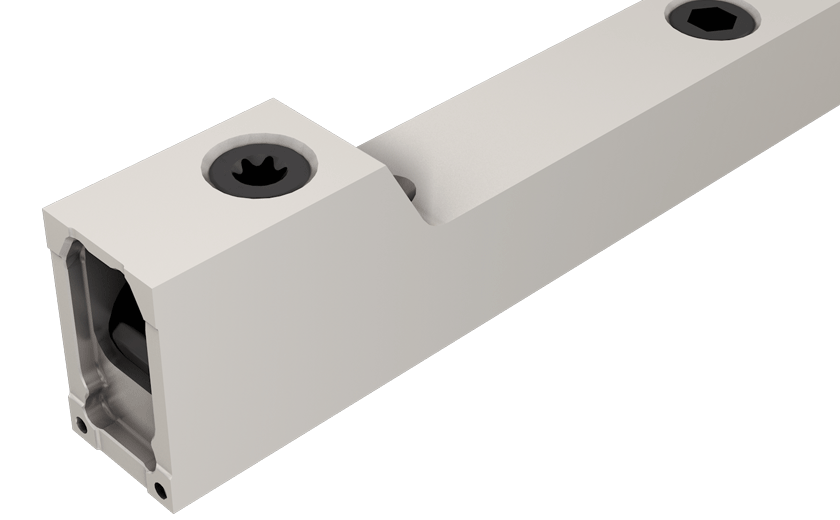

NQCH-1212-JHP-JETCUT Square Shanks for NEOSWISS Modular Heads intended for Swiss-Type Machines

Dostępność: duża ilość

Cena brutto: 1 052,64 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1052.64

Cena netto: 855,80 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 169,60 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3389386

NQCH-1212-JHP

Podstawowe informacje
FamilyName	NQCH-JHP
ToolType	Holder
Unit	M
PackSize	1
product_code	ISC3389386
ProductName	NQCH-1212-JHP
COO	Israel
UOM	EA
UNSPSC	23231001
FamilyDesc	JETCUT Square Shanks for NEOSWISS Modular Heads intended for Swiss-Type Machines
FamilyShortDesc	JETCUT Square Shanks for NEOSWISS Modular Heads intended for Swiss-Type Machines
Link	https://www.Iscar.com/ecat/e.asp?cat=3389386
Remarks	Recommended torque for clamping screw 7-8 N*m Replacing the clamping screw should be performed by an ISCAR qualified technician
FamilyBrand	Iscar
BrandName	Iscar
ItemRemark	The shank is neutral and can be used for both left and right hand head
Tool Type	Cylindrical Shanks
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.1940
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3389386
Coolant Supply Property (CSP)	Coolant Thru
Overall Length (OAL)	100 mm
Shank Height (H)	12 mm
Shank Width (B)	12 mm
