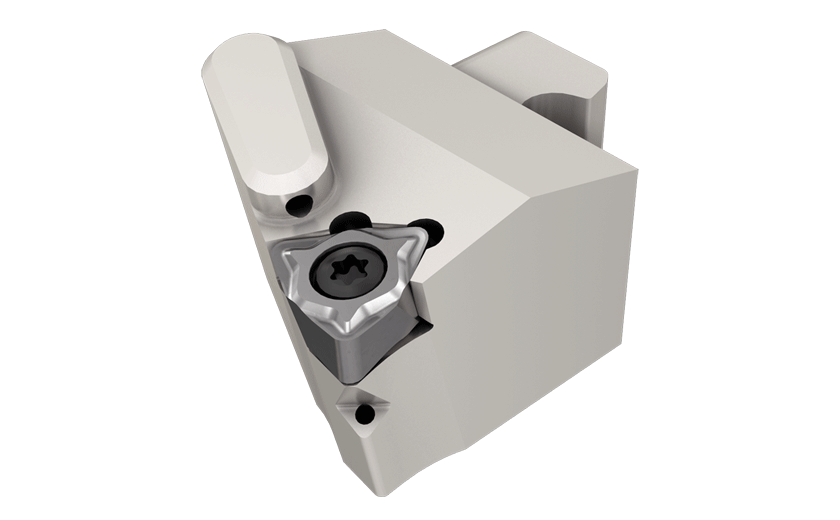

NQCH12-SWLNL-04S-JHP-Screw Lock JETCUT Modular Heads Carrying Positive Double-Sided Trigon Inserts for Swiss-Type Machines

Dostępność: duża ilość

Cena brutto: 917,19 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

917.19

Cena netto: 745,68 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 019,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3397184

NQCH12-SWLNL-04S-JHP

Podstawowe informacje
FamilyName	NQCH-SWLNR/L-S-JHP
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3397184
ProductName	NQCH12-SWLNL-04S-JHP
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Screw Lock JETCUT Modular Heads Carrying Positive Double-Sided Trigon Inserts for Swiss-Type Machines
FamilyShortDesc	Screw Lock JETCUT Modular Heads Carrying Positive Double-Sided Trigon Inserts for Swiss-Type Machines
Link	https://www.Iscar.com/ecat/e.asp?cat=3397184
Remarks	Use only RH Shank with RH Head and LH Shank with LH Head Use a left-hand insert on a right-hand tool and vice versa
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. 80° Trigon 95° Approach \|
APP1Name	Ext. 80° Trigon 95° Approach
ItemRemark
Tool Type	Internal Indexble -Turn Tool
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.0600
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	3397184
Coolant Supply Property (CSP)	Coolant Thru
Cutting Direction (HAND)	Left Hand
Functional Width (WF)	12.15 mm
Head Length (LH)	20 mm
Master Insert Identification (MIID)	WNGP.. 0403
Overall Length (OAL)	28.8 mm
Rake Angle Axial (GAMP)	11 Degrees
Rake Angle Radial (GAMF)	1 Degrees
