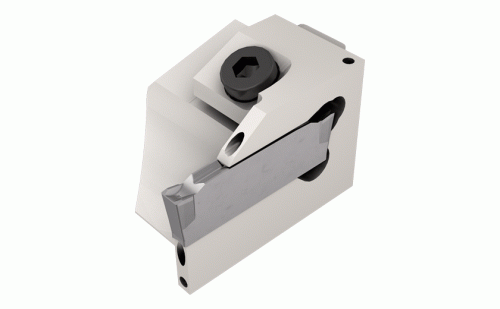

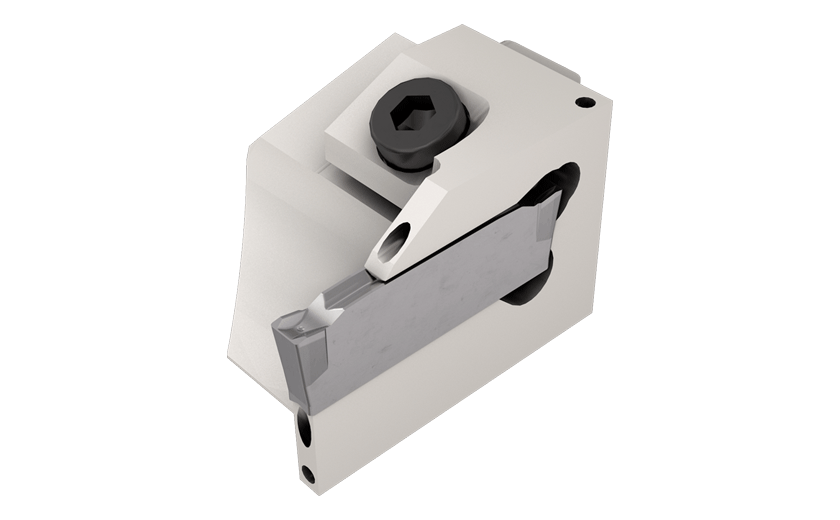

NQCH12R-DGTL-2D24SH-JHP-Screw Lock JETCUT Modular Heads Carrying DO-GRIP Double-Edged Parting Inserts for Swiss-Type Machines

Dostępność: duża ilość

Cena brutto: 855,27 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

855.27

Cena netto: 695,34 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 950,30 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3429683

NQCH12R-DGTL-2D24SH-JHP

Podstawowe informacje
FamilyName	NQCH-DGTR/L-D-SH-JHP
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3429683
ProductName	NQCH12R-DGTL-2D24SH-JHP
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Screw Lock JETCUT Modular Heads Carrying DO-GRIP Double-Edged Parting Inserts for Swiss-Type Machines
FamilyShortDesc	Screw Lock JETCUT Modular Heads Carrying DO-GRIP Double-Edged Parting Inserts for Swiss-Type Machines
Link	https://www.Iscar.com/ecat/e.asp?cat=3429683
Remarks	Use only RH Shank with RH Head and LH Shank with LH Head exept NQCH12R/16R... heads.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. Grooving \| Parting \|
APP1Name	Ext. Grooving
APP2Name	Parting
ItemRemark	The head is dedicated for the right hand machines and to be mounted on the right hand holder only.
Tool Type	Parting & Grooving Tools
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.0500
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3429683
Cutting Direction (HAND)	Left Hand
Cutting Width Maximum (CWX)	2.5 mm
Cutting Width Minimum (CWN)	1.9 mm
Head Length (LH)	24 mm
Overall Height (OAH)	16.2 mm
Overall Length (OAL)	32.8 mm
Tool Assembly Length (LTA)	24 mm
Work Piece Parting Diameter Maximum (CUTDIA)	24 mm
