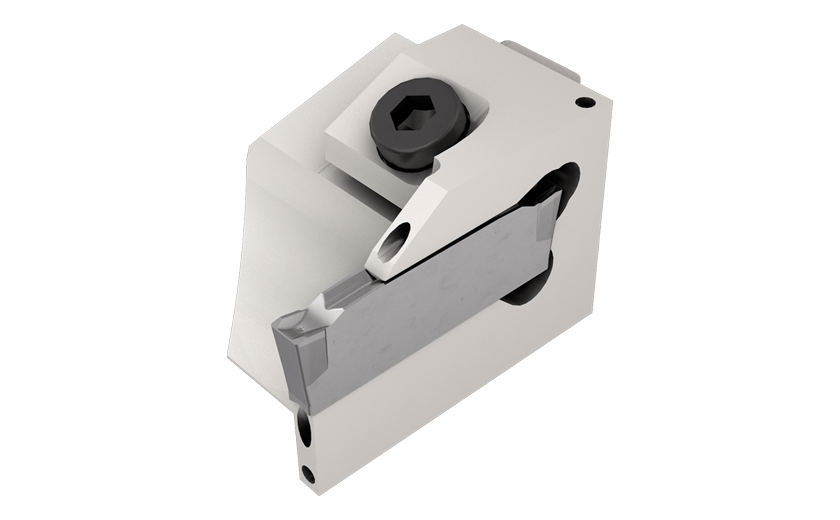

NQCH16R-DGTL-3D24SH-JHP-Screw Lock JETCUT Modular Heads Carrying DO-GRIP Double-Edged Parting Inserts for Swiss-Type Machines

Dostępność: duża ilość

Cena brutto: 924,93 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

924.93

Cena netto: 751,98 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 027,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3427136

NQCH16R-DGTL-3D24SH-JHP

Podstawowe informacje
FamilyName	NQCH-DGTR/L-D-SH-JHP
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3427136
ProductName	NQCH16R-DGTL-3D24SH-JHP
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Screw Lock JETCUT Modular Heads Carrying DO-GRIP Double-Edged Parting Inserts for Swiss-Type Machines
FamilyShortDesc	Screw Lock JETCUT Modular Heads Carrying DO-GRIP Double-Edged Parting Inserts for Swiss-Type Machines
Link	https://www.Iscar.com/ecat/e.asp?cat=3427136
Remarks	Use only RH Shank with RH Head and LH Shank with LH Head exept NQCH12R/16R... heads.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. Grooving \| Parting \|
APP1Name	Ext. Grooving
APP2Name	Parting
ItemRemark	The head is dedicated for the right hand machines and to be mounted on the right hand holder only.
Tool Type	Parting & Grooving Tools
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.0580
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3427136
Cutting Direction (HAND)	Left Hand
Cutting Width Maximum (CWX)	3.18 mm
Cutting Width Minimum (CWN)	3 mm
Head Length (LH)	24.2 mm
Overall Height (OAH)	20.2 mm
Overall Length (OAL)	33 mm
Tool Assembly Length (LTA)	24.2 mm
Work Piece Parting Diameter Maximum (CUTDIA)	24 mm
