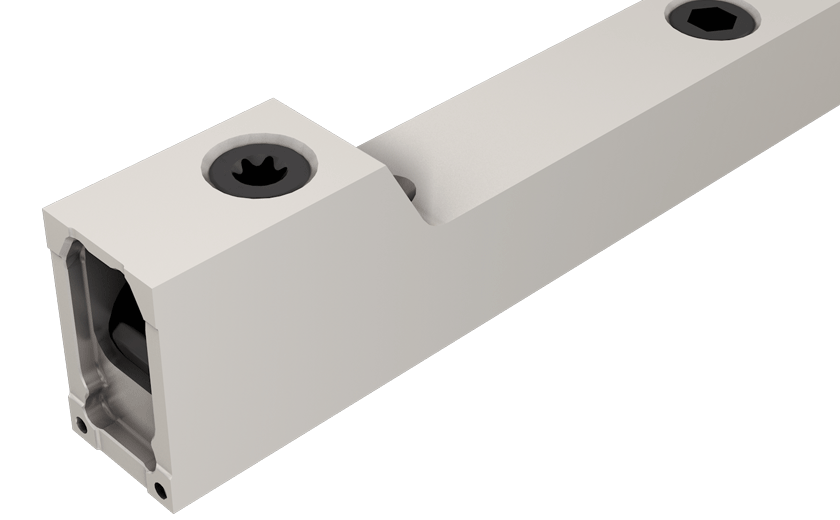

NQCHR-12.7-JHP-JETCUT Square Shanks for NEOSWISS Modular Heads intended for Swiss-Type Machines

Dostępność: duża ilość

Cena brutto: 1 052,64 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1052.64

Cena netto: 855,80 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 169,60 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3397171

NQCHR-12.7-JHP

Podstawowe informacje
FamilyName	NQCH-JHP
ToolType	Holder
Unit	I
PackSize	1
product_code	ISC3397171
ProductName	NQCHR-12.7-JHP
COO	Israel
UOM	EA
UNSPSC	23231001
FamilyDesc	JETCUT Square Shanks for NEOSWISS Modular Heads intended for Swiss-Type Machines
FamilyShortDesc	JETCUT Square Shanks for NEOSWISS Modular Heads intended for Swiss-Type Machines
Link	https://www.Iscar.com/ecat/e.asp?cat=3397171
Remarks	Recommended torque for clamping screw 62-70 lbf*in Replacing the clamping screw should be performed by an ISCAR qualified technician
FamilyBrand	Iscar
BrandName	Iscar
ItemRemark	NQCHR shank is for the right hand head only, and NQCHL is for the left hand head only
Tool Type	Cylindrical Shanks
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.4586
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3397171
Coolant Supply Property (CSP)	Coolant Thru
Overall Length (OAL)	3.937"
Shank Height (H)	1/2"
Shank Width (B)	1/2"
