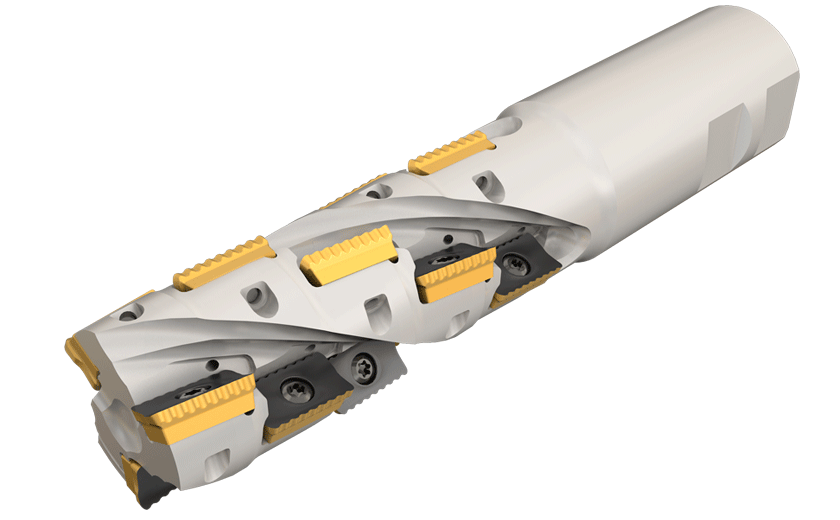

P290 ACK2.0-4-2.1-W150-18-Extended flute endmills carrying .472 and .708" long edged inserts.

Dostępność: duża ilość

Cena brutto: 4 373,10 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

4373.10

Cena netto: 3 555,37 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 4 859,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3106252

P290 ACK2.0-4-2.1-W150-18

Podstawowe informacje
FamilyName	P290 ACK
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3106252
ProductName	P290 ACK2.0-4-2.1-W150-18
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Extended flute endmills carrying .472 and .708" long edged inserts.
FamilyShortDesc	Extended Flute Endmills Carrying .472 and .708" Long Edged Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3106252
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Rampdown \| Shouldering \|
APP1Name	Rampdown
APP2Name	Shouldering
ItemRemark
Tool Type	90° Extended flute endmills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	3.1570
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3106252
Connection Code Machine Side (CCMS)	Weldon
Connection Diameter Machine Side (DCONMS)	1-1/2"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	2"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	12
Depth of Cut Maximum (APMX)	2.1"
Flute Count (NOF)	4
Master Insert Identification (MIID)	P290 ACKT 1806PDR-FW
Overall Length (OAL)	5.91"
