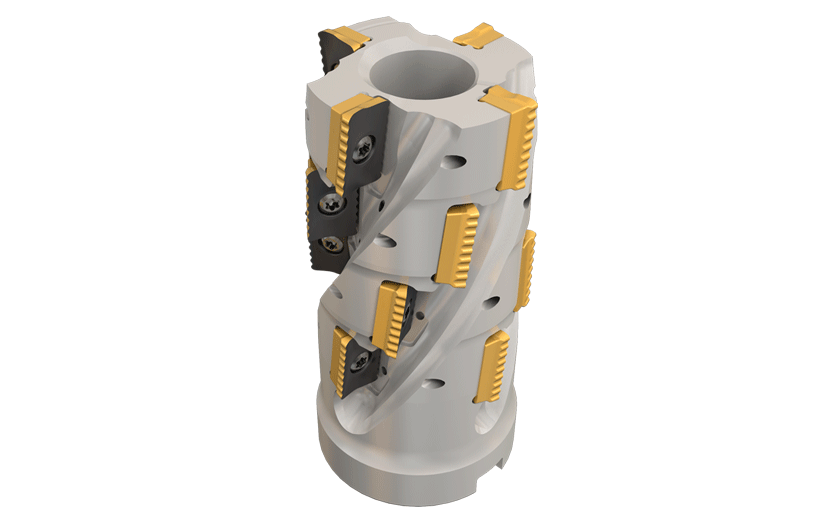

P290 SM D2.0-4-2.1-1.0-18-Extended flute shell mills carrying .472 and .708" long edged inserts.

Dostępność: duża ilość

Cena brutto: 2 852,19 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2852.19

Cena netto: 2 318,85 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 169,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3110829

P290 SM D2.0-4-2.1-1.0-18

Podstawowe informacje
FamilyName	P290 SM
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3110829
ProductName	P290 SM D2.0-4-2.1-1.0-18
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Extended flute shell mills carrying .472 and .708" long edged inserts.
FamilyShortDesc	Extended Flute Shell Mills Carrying .472 and .708" Long Edged Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3110829
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Rampdown \| Shouldering \|
APP1Name	Rampdown
APP2Name	Shouldering
ItemRemark	It is recommended to mount the tool on CAT50 SEM 1X1.97X3.00C adapter
Tool Type	90° Extended flute shell mill
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	2.0415
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3110829
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	1.97"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	2"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	12
Depth of Cut Maximum (APMX)	2.1"
Flute Count (NOF)	4
Master Insert Identification (MIID)	P290 ACKT 1806PDR-FW
Overall Length (OAL)	3.15"
