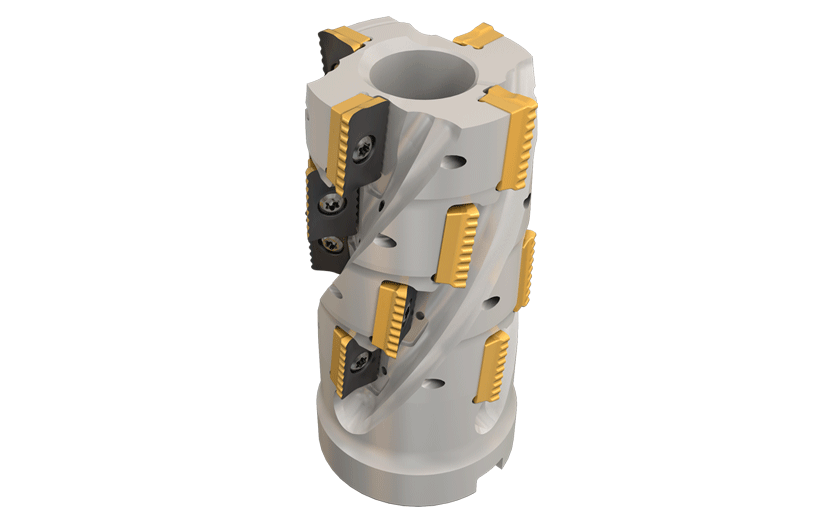

P290 SM D3.-6-2.8-1.25-18-Extended flute shell mills carrying .472 and .708" long edged inserts.

Dostępność: duża ilość

Cena brutto: 5 959,80 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

5959.80

Cena netto: 4 845,37 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 6 622,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3137446

P290 SM D3.-6-2.8-1.25-18

Podstawowe informacje
FamilyName	P290 SM
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3137446
ProductName	P290 SM D3.-6-2.8-1.25-18
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Extended flute shell mills carrying .472 and .708" long edged inserts.
FamilyShortDesc	Extended Flute Shell Mills Carrying .472 and .708" Long Edged Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3137446
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Rampdown \| Shouldering \|
APP1Name	Rampdown
APP2Name	Shouldering
ItemRemark
Tool Type	90° Extended flute shell mill
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	5.0376
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3137446
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	2.68"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	3"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	24
Depth of Cut Maximum (APMX)	2.8"
Flute Count (NOF)	6
Master Insert Identification (MIID)	P290 ACKT 1806PDR-FW
Overall Length (OAL)	3.94"
