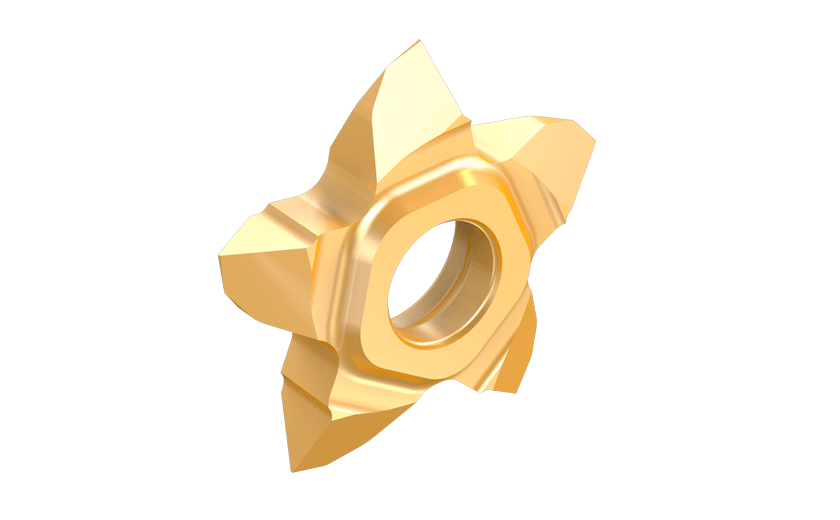

PENTA 17-WTL008LS IC1008-Precision ground pentagonal external threading inserts with a 55° partial profile for general applications

Dostępność: duża ilość

Cena brutto: 166,02 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

166.02

Cena netto: 134,98 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 184,47 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3346824

PENTA 17-WTL008LS IC1008

Podstawowe informacje
FamilyName	PENTA 17-WT-RS/LS
ToolType	Insert
Unit	M
PackSize	5
product_code	ISC3346824
ProductName	PENTA 17-WTL008LS IC1008
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Precision ground pentagonal external threading inserts with a 55° partial profile for general applications
FamilyShortDesc	Precision Ground Pentagonal External Threading Inserts with a 55° Partial Profile for General Applications
Link	https://www.Iscar.com/ecat/e.asp?cat=3346824
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Threading (Ext.) Groove Turn T \| Threading Between Walls \|
APP1Name	Threading (Ext.) Groove Turn T
APP2Name	Threading Between Walls
ItemRemark
Coating	TiAlN+TiN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Aluminum / Non-Ferrous Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0046
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	3346824
Grade	IC1008
Corner Radius (RE)	0.08 mm
Cutting Direction (HAND)	Left Hand
Thread Form Type (THFT)	VP55
Threads per Inch Maximum (TPIX)	31
Threads per Inch Minimum (TPIN)	8
