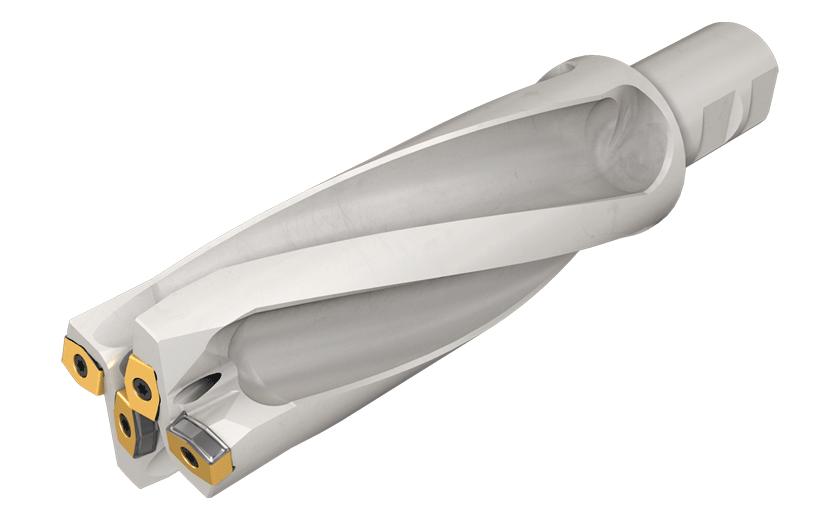

PH D2.50-H055-A-W1.50-13-High productivity center cutting plungers with spiral flutes carrying PLHT 1305-PDX inserts.

Dostępność: duża ilość

Cena brutto: 2 898,63 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2898.63

Cena netto: 2 356,61 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 220,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3102911

PH D2.50-H055-A-W1.50-13

Podstawowe informacje
FamilyName	PH-A
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3102911
ProductName	PH D2.50-H055-A-W1.50-13
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	High productivity center cutting plungers with spiral flutes carrying PLHT 1305-PDX inserts.
FamilyShortDesc	High Productivity Center Cutting Plungers with Spiral Flutes Carrying PLHT 1305-PDX Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3102911
Remarks	For adaptation, click on More Info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Counter Boring \| Drill Mill \| Plunging & Recessing \| Side Plunging \|
APP1Name	Counter Boring
APP2Name	Drill Mill
APP3Name	Plunging & Recessing
APP4Name	Side Plunging
ItemRemark
Tool Type	Plungers cutters
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	5.0927
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3102911
Connection Code Machine Side (CCMS)	Weldon
Connection Diameter Machine Side (DCONMS)	1-1/2"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	2-1/2"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	6
Face Effective Cutting Edge Count (ZEFF)	2
Functional Length (LF)	6.31"
Overall Length (OAL)	8.99"
Shank Type	Weldon
Usable Length (LU)	5-1/2"
