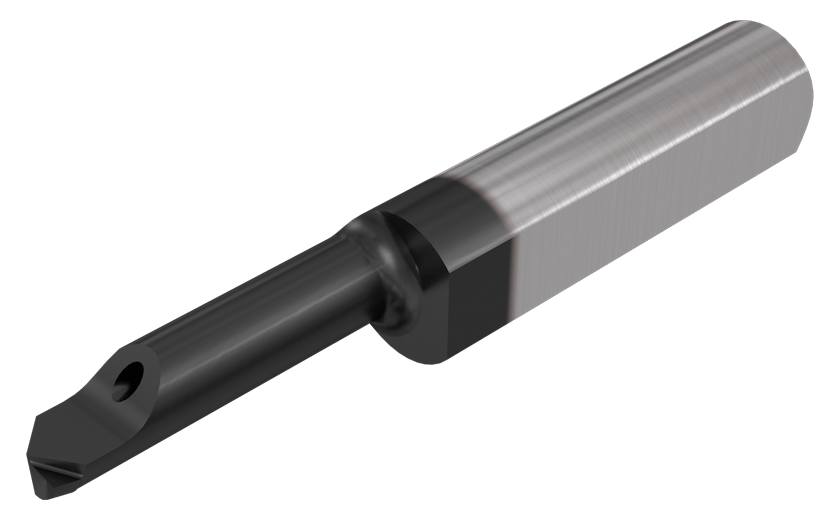

PICCO LM050.35-16 IC909-Inserts with sharp corners for internal precision and high surface quality turning and profiling. Designed mainly for machining medical parts.

Dostępność: duża ilość

Cena brutto: 153,64 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

153.64

Cena netto: 124,91 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 170,71 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3309751

PICCO LM050.35-16 IC909

Podstawowe informacje
FamilyName	PICCO R/LM
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC3309751
ProductName	PICCO LM050.35-16 IC909
COO	Germany
UOM	EA
UNSPSC	23241602
FamilyDesc	Inserts with sharp corners for internal precision and high surface quality turning and profiling. Designed mainly for machining medical parts.
FamilyShortDesc	Profiling Inserts with Coolant Channel Optimized for Machining Medical Parts
Link	https://www.Iscar.com/ecat/e.asp?cat=3309751
Remarks	An optimized insert geometry and carbide grade for machining medical parts made from titanium, medical standard stainless steel and other difficult to machine materials.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Int. Boring and Profiling \|
APP1Name	Int. Boring and Profiling
ItemRemark
Coating	TiCrVN
Cutting Edge Material	Carbide
Tool Type	Solid, Turning & Grooving
Point Shape
Measurement Type	Metric
Applicable Material	\| Stainless Steel \| Super-Alloys / Titanium \|
Thread Standard
Package Weight
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	3309751
Grade	IC909
Connection Diameter Machine Side (DCONMS)	4 mm
Corner Radius (RE)	0.02 mm
Cutting Depth Maximum (CDX)	0.17 mm
Cutting Direction (HAND)	Left Hand
Front End Width (a)	3.1 mm
Minimum Bore Diameter (DMIN)	3.5 mm
Overall Length (OAL)	30 mm
