PICJ RTH7I0.50D024 IC908-

Dostępność: duża ilość

Cena brutto: 272,58 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

272.58

Cena netto: 221,61 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 163,40 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3425269

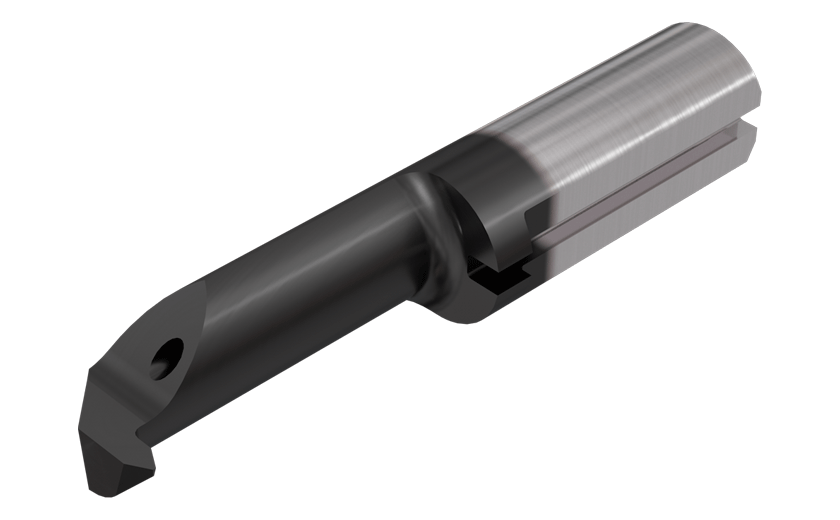

PICJ RTH7I0.50D024 IC908

Podstawowe informacje
FamilyName	PICJ R/LTH (60° Threading)
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC3425269
ProductName	PICJ RTH7I0.50D024 IC908
COO	Israel
UOM	EA
UNSPSC	23242117
FamilyDesc
FamilyShortDesc	Inserts with a 60° Internal Thread Profile and Inner Coolant Channel for 2.4mm min. Bore Diameter
Link	https://www.Iscar.com/ecat/e.asp?cat=3425269
Remarks	DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H ANSI/ASME B1.1 - Internal tolerance: 2B PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Threading (Int.) \|
APP1Name	Threading (Int.)
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid Threading Tools
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0060
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3425269
Grade	IC908
Central Flat (CF)	0.04 mm
Connection Diameter Machine Side (DCONMS)	4 mm
Cutting Direction (HAND)	Right Hand
Front End Width (a)	2.3 mm
Functional Length (LF)	22 mm
Functional Width (WF)	0.3 mm
Minimum Bore Diameter (DMIN)	2.4 mm
Thread Form Type (THFT)	VP60
Thread Pitch (TP)	0.5 mm
