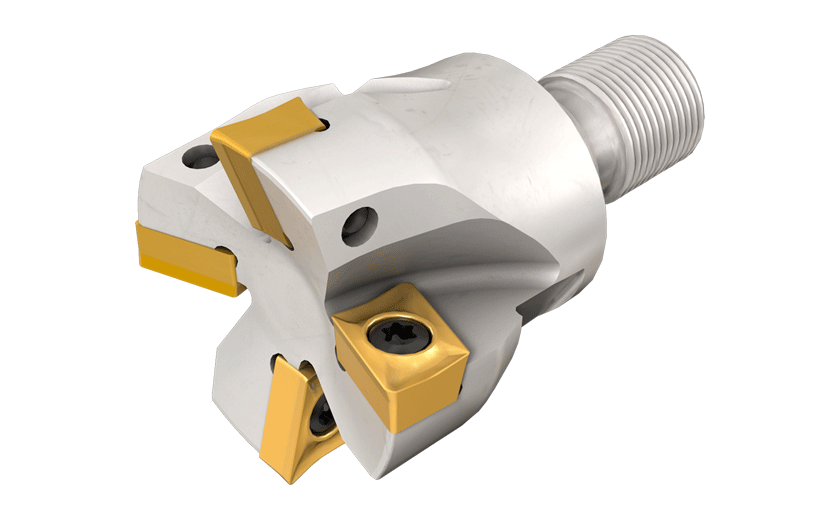

PLX D32-M16-12-Side plungers with FLEXFIT threaded adaptation carrying XCMT 120408TR inserts.

Dostępność: duża ilość

Cena brutto: 2 212,31 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2212.31

Cena netto: 1 798,63 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 530,80 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3103189

PLX D32-M16-12

Podstawowe informacje
FamilyName	PLX-M
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3103189
ProductName	PLX D32-M16-12
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Side plungers with FLEXFIT threaded adaptation carrying XCMT 120408TR inserts.
FamilyShortDesc	Side Plungers with FLEXFIT Threaded Adaptation Carrying XCMT 120408TR Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3103189
Remarks	For adaptation, click on More Info No internal coolant When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Rampdown \| Side Plunging \|
APP1Name	Facing
APP2Name	Rampdown
APP3Name	Side Plunging
ItemRemark
Tool Type	Plungers cutters
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.2630
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	3103189
Body Diameter (BD)	30.4 mm
Connection Code Machine Side (CCMS)	FLEXFIT
Coolant Supply Property (CSP)	External
Cutting Diameter (DC)	32 mm
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	3
Depth of Cut Maximum (APMX)	9 mm
Face Effective Cutting Edge Count (ZEFF)	3
Functional Length (LF)	35 mm
Overall Length (OAL)	60 mm
