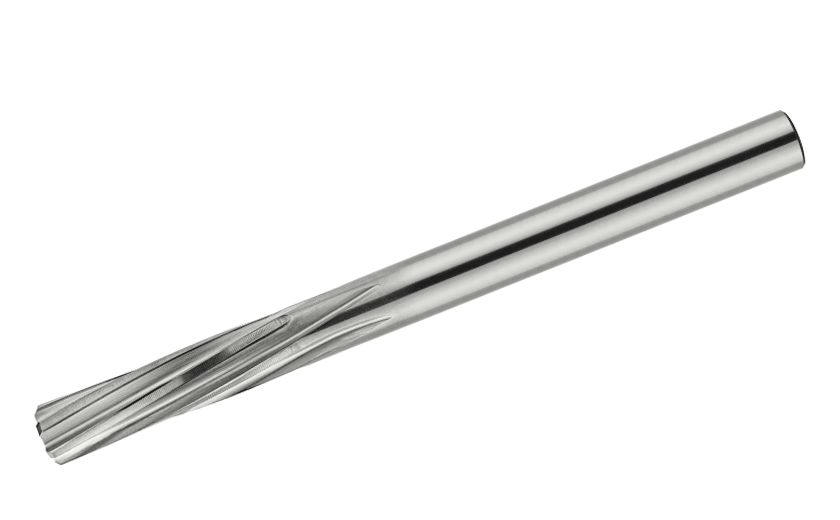

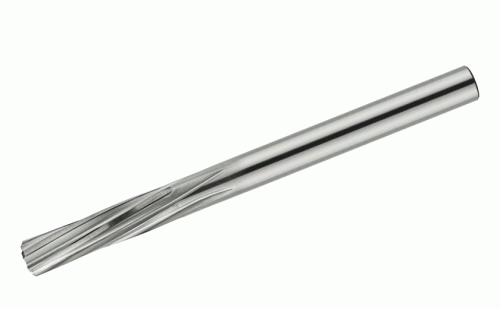

RM-FCR-1300-H7N-CS-C IC07-DIN 212B solid carbide reamers with helical flutes and a cylindrical shank for through holes.

Dostępność: duża ilość

Cena brutto: 908,71 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

908.71

Cena netto: 738,79 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 009,68 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 1870707

RM-FCR-1300-H7N-CS-C IC07

Podstawowe informacje
FamilyName	RM-FCR-H7N-CS-C
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC1870707
ProductName	RM-FCR-1300-H7N-CS-C IC07
COO	Italy
UOM	EA
UNSPSC	23241611
FamilyDesc	DIN 212B solid carbide reamers with helical flutes and a cylindrical shank for through holes.
FamilyShortDesc	DIN 212B Solid Carbide Reamers with Helical Flutes and a Cylindrical Shank for Through Holes
Link	https://www.Iscar.com/ecat/e.asp?cat=1870707
Remarks	Hole tolerance: H7 manufacturing tolerance according to DIN1420 Available grades: IC07 - uncoated, optional: IC907 - TiAlN PVD coated Special diameters are available on request
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Stacked Plates \| Through & Axial Groove \| Through & Perpendicular Holes \| Through & Radial Groove \| Through Hole \|
APP1Name	Stacked Plates
APP2Name	Through & Axial Groove
APP3Name	Through & Perpendicular Holes
APP4Name	Through & Radial Groove
APP5Name	Through Hole
ItemRemark
Coating	Uncoated
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Stainless Steel \| Aluminum / Non-Ferrous Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.2770
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	1870707
Grade	IC07
Connection Diameter Machine Side (DCONMS)	13 mm
Cutting Edge Length (L)	44 mm
Overall Length (OAL)	151 mm
