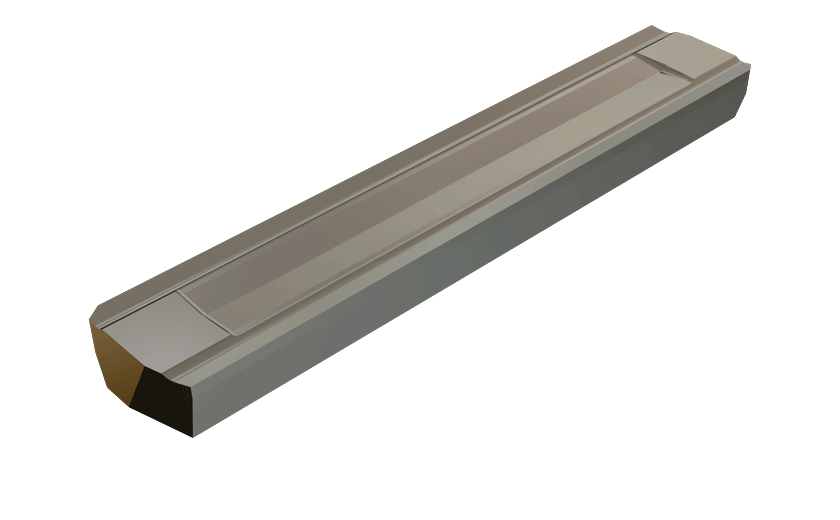

RM-SEI-1C-12 IC07-Single Edge Reamer Inserts, suitable for aluminum and brass.

Dostępność: duża ilość

Cena brutto: 379,36 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

379.36

Cena netto: 308,42 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 253,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5140216

RM-SEI-1C-12 IC07

Podstawowe informacje
FamilyName	RM-SEI-C
ToolType	Insert
Unit	M
PackSize	5
product_code	ISC5140216
ProductName	RM-SEI-1C-12 IC07
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Single Edge Reamer Inserts, suitable for aluminum and brass.
FamilyShortDesc	Single Edge Reamer Inserts for Aluminum and Brass
Link	https://www.Iscar.com/ecat/e.asp?cat=5140216
Remarks	Lead type of insert should be compatible with lead type of the tool Available on request
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Blind & Perpendicular Hole \| Blind & Radial Groove \| Blind Hole \| Stacked Plates \| Through & Axial Groove \| Through & Perpendicular Holes \| Through & Radial Groove \| Through Hole \|
APP1Name	Blind & Perpendicular Hole
APP2Name	Blind & Radial Groove
APP3Name	Blind Hole
APP4Name	Stacked Plates
APP5Name	Through & Axial Groove
APP6Name	Through & Perpendicular Holes
APP7Name	Through & Radial Groove
APP8Name	Through Hole
ItemRemark
Coating	Uncoated
Cutting Edge Material	Carbide
Tool Type	Reaming Regular Inserts.
Point Shape
Measurement Type	Metric
Applicable Material	\| Stainless Steel \| Aluminum / Non-Ferrous Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0013
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	5140216
Grade	IC07
Angle	12 Degrees
Cutting Edge Length (L)	15.5 mm
Insert Thickness (S)	1.5 mm
Insert Seat Size Code (SSC)	1.0
Insert Width (W1)	2.8 mm
