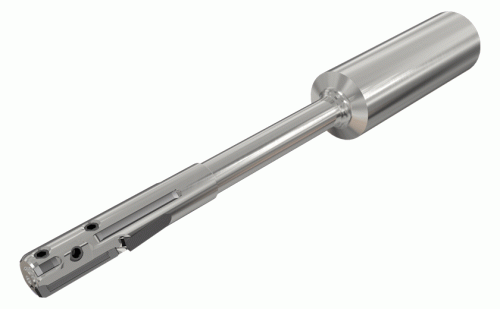

RM-SET27.000H6T-B-C25S-Single-edged indexable reamers for through holes.

Dostępność: duża ilość

Cena brutto: 4 668,01 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

4668.01

Cena netto: 3 795,13 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 268,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 4445265

RM-SET27.000H6T-B-C25S

Podstawowe informacje
FamilyName	RM-SET-T-B
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC4445265
ProductName	RM-SET27.000H6T-B-C25S
COO	Italy
UOM	EA
UNSPSC	23241611
FamilyDesc	Single-edged indexable reamers for through holes.
FamilyShortDesc	Single-Edged Indexable Reamers for Through Holes
Link	https://www.Iscar.com/ecat/e.asp?cat=4445265
Remarks	For user guide and cutting conditions, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Stacked Plates \| Through & Axial Groove \| Through & Perpendicular Holes \| Through & Radial Groove \| Through Hole \|
APP1Name	Stacked Plates
APP2Name	Through & Axial Groove
APP3Name	Through & Perpendicular Holes
APP4Name	Through & Radial Groove
APP5Name	Through Hole
ItemRemark
Tool Type	Indexable Reaming Tools
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.1000
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	4445265
Connection Diameter Machine Side (DCONMS)	25 mm
Cutting Diameter (DC)	27 mm
Depth of Cut Maximum (APMX)	22.5 mm
Insert Seat Size Code (SSC)	4.0
Overall Length (OAL)	221 mm
Shank Length (LS)	56 mm
Usable Length (LU)	160 mm
