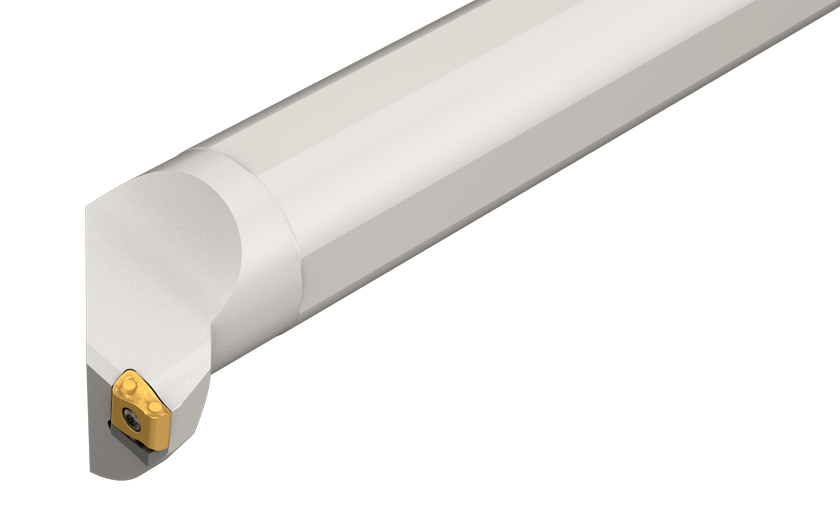

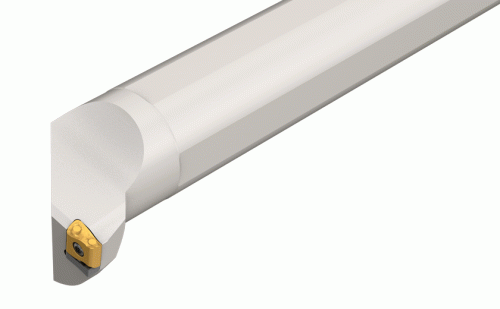

S-SLANR 20-11 TANG-Boring bars carrying LNMX tangentially screw clamped inserts with 4 cutting edges for high metal removal rates.

Dostępność: duża ilość

Cena brutto: 1 342,89 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1342.89

Cena netto: 1 091,78 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 492,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3602350

S-SLANR 20-11 TANG

Podstawowe informacje
FamilyName	S-SLANR/L-TANG
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3602350
ProductName	S-SLANR 20-11 TANG
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Boring bars carrying LNMX tangentially screw clamped inserts with 4 cutting edges for high metal removal rates.
FamilyShortDesc	Boring Bars Carrying LNMX Tangentially Screw Clamped Inserts with 4 Cutting Edges for High Metal Removal Rates
Link	https://www.Iscar.com/ecat/e.asp?cat=3602350
Remarks	Right-hand inserts for left-hand bars. Left-hand inserts for right-hand bars.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Int. Tangential 93° Approach \|
APP1Name	Int. Tangential 93° Approach
ItemRemark
Tool Type	Internal Indexble -Turn Tool
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	4.9317
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3602350
Connection Diameter Machine Side (DCONMS)	1-1/4"
Coolant Supply Property (CSP)	External
Cutting Direction (HAND)	Right Hand
Functional Width (WF)	0.87"
Master Insert Identification (MIID)	LNMX 1104..
Minimum Bore Diameter (DMIN)	2.087"
Overall Length (OAL)	14"
Rake Angle Axial (GAMP)	-6 Degrees
Rake Angle Radial (GAMF)	-15 Degrees
Reduced Body Diameter Length (LDRED)	1.97"
Shank Height (H)	1.171"
